Radiator Upper Mount Replacement (LFX, LF3)

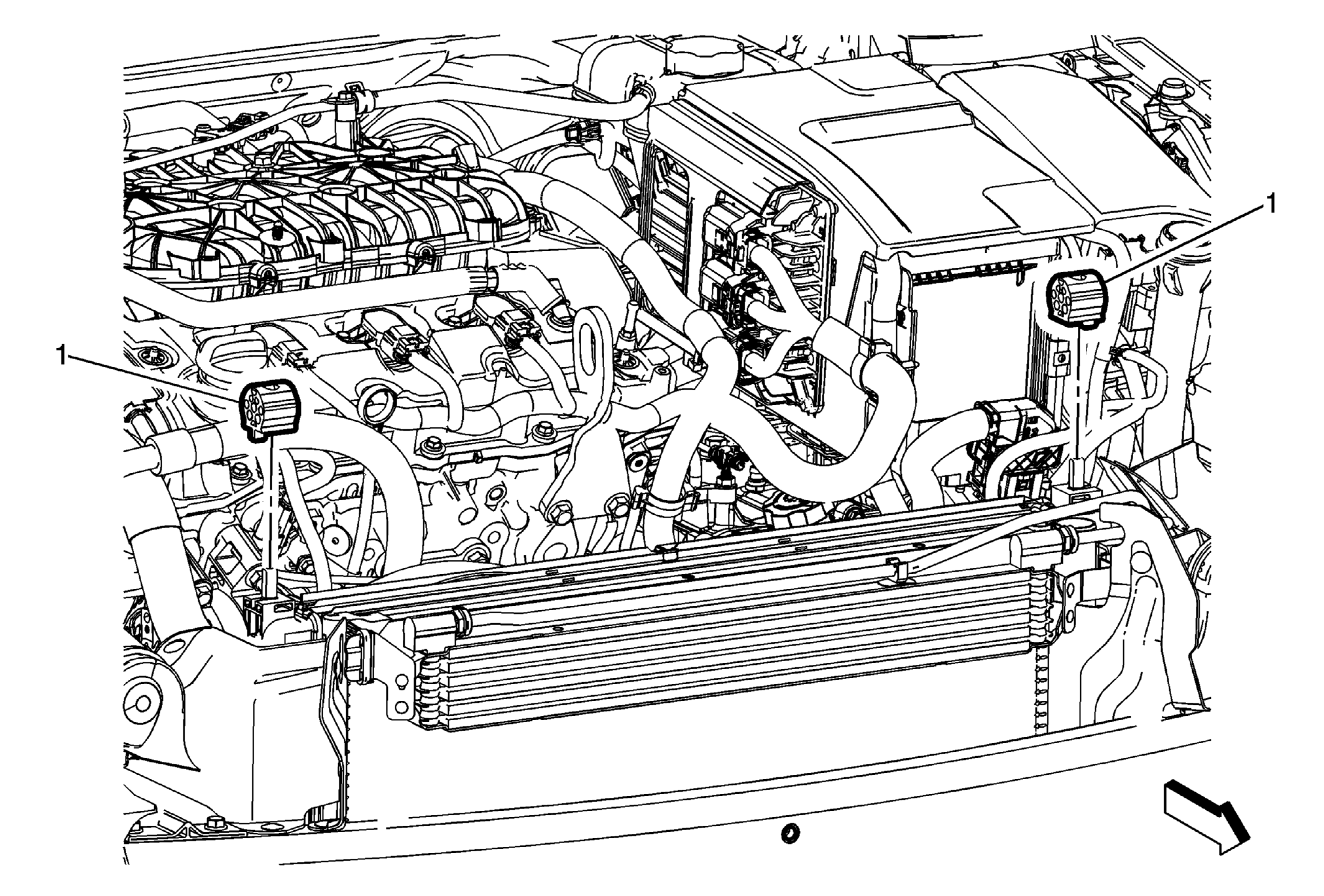

Fig 1: Radiator Upper Mounts
GM2769555Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove front end upper tie bar. Refer to Front End Upper Tie Bar Replacement (Without LF3)Front End Upper Tie Bar Replacement (With LF3) .
  3. Remove the radiator upper bracket. Refer to Radiator Upper Bracket Replacement (LFX, LF3) .
  4. Support the radiator.
1 Radiator Upper Mount
