Front End Upper Tie Bar Replacement (Without LF3)

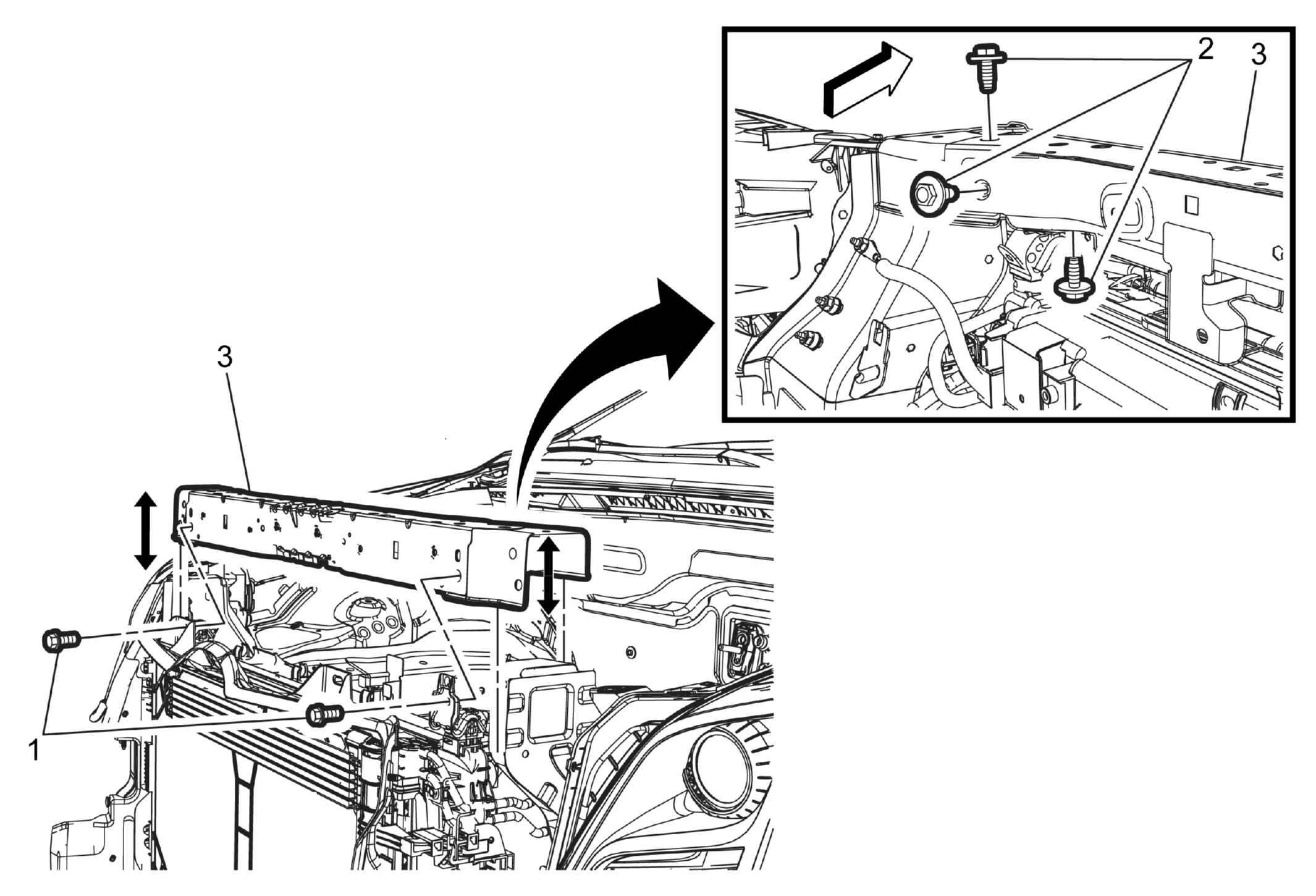

Fig 1: Front End Upper Tie Bar & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement - Upper . Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement . Reposition the hood latch cable from the front end upper tie bar. Disconnect and unclip the wiring harness from the tie bar.
1	Front Upper Radiator Bracket Bolt (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front End Upper Tie Bar Bolt (Qty: 6) Tighten 22 N.m (16 lb ft)
3	Front End Upper Tie Bar Procedure Transfer parts as necessary.
