Radiator Upper Bracket Replacement (LFX, LF3)

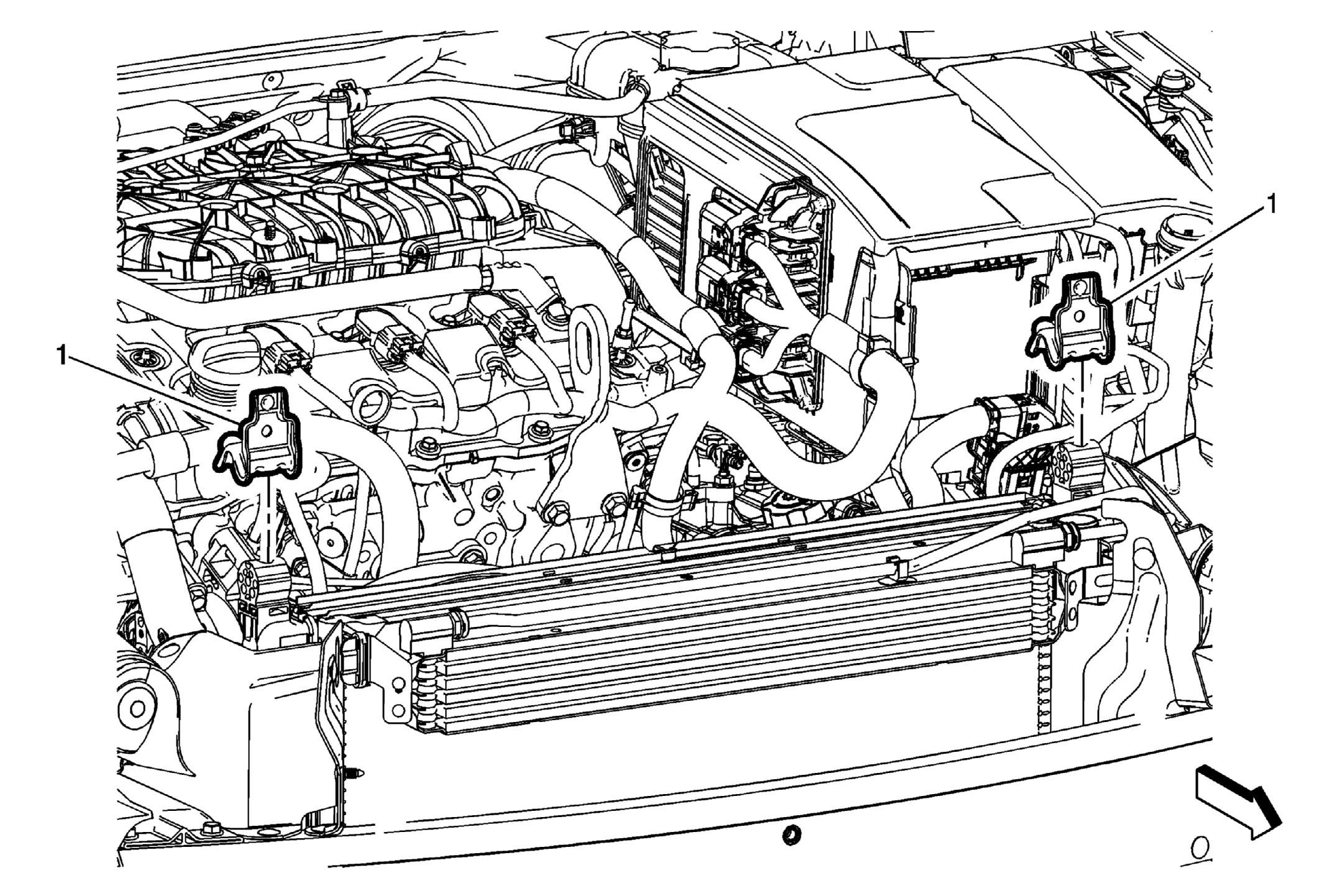

Fig 1: Radiator Upper Brackets
GM2769550Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove front end upper tie bar. Refer to Front End Upper Tie Bar Replacement (Without LF3)Front End Upper Tie Bar Replacement (With LF3) .
  3. Support the radiator.
1 Radiator Upper Bracket (Qty: 2)
