Rear Compartment Side Trim Replacement - Left Side (With HP9)

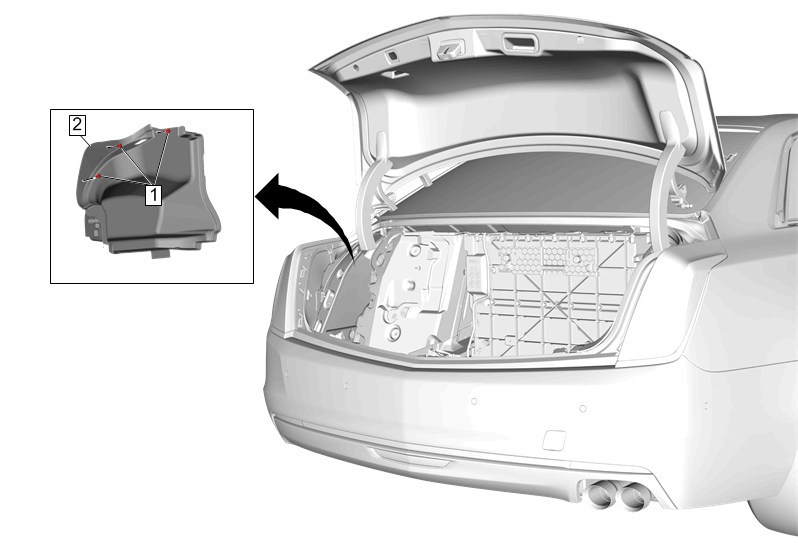

Fig 1: Rear Compartment Side Trim - Left Side (With HP9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear End Trim Finish Panel Replacement Rear Compartment Floor Stowage Compartment Tray Replacement (With HP9) Drive Motor Battery Cover Replacement (With HP9)
1	Rear Compartment Side Trim Retainer [3x] Procedure Use a flat bladed plastic trim tool.
2	Rear Compartment Side Trim - Left Side Procedure Disconnect electrical connections, if applicable. NOTE: Carefully manipulate the deck lid hinge opening of the side trim past the hinge cover.

Callout

Component Name

Preliminary Procedures

Rear Compartment Side Trim Retainer [3x]
Procedure
Use a flat bladed plastic trim tool.

Rear Compartment Side Trim - Left Side
Procedure
Disconnect electrical connections, if applicable.

NOTE: Carefully manipulate the deck lid hinge opening of the side trim past the hinge cover.
