Drive Motor Battery Cover Replacement (With HP9)

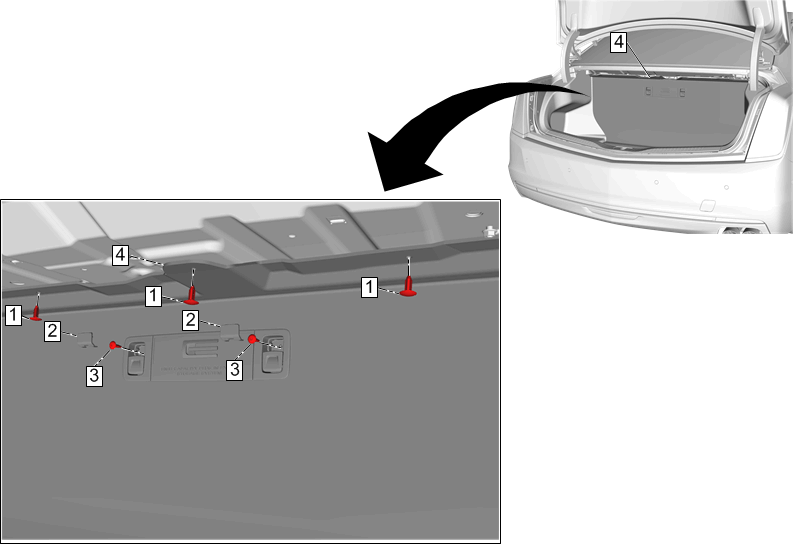

Fig 1: Drive Motor Battery Cover (With HP9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Compartment Floor Panel Trim Replacement (With HP9)
1	Drive Motor Battery Cover Retainer [3x] Procedure  Use a flat bladed plastic trim tool.
2	Drive Motor Battery Impact Absorber Fastener Cover [2x] Procedure  Use a flat bladed plastic trim tool.
3	Drive Motor Battery Impact Absorber Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
4	Drive Motor Battery Cover
