Rear Compartment Floor Stowage Compartment Tray Replacement (With HP9)

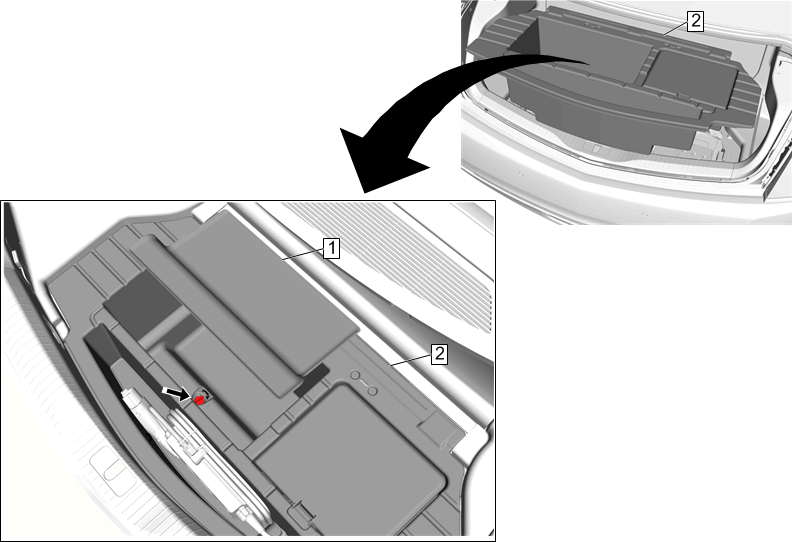

Fig 1: Rear Compartment Floor Stowage Compartment Tray (With HP9)
GM4497776Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Compartment Floor Panel Trim Replacement (With HP9)
  2. Remove the drive motor battery charger cable.
1 Cargo Container Mat

Procedure

  1. Remove or reposition rubber mat.
  2. Rotate integral rotary lock knob clockwise to disengage.
2 Rear Compartment Floor Stowage Compartment Tray
