Rear End Trim Finish Panel Replacement

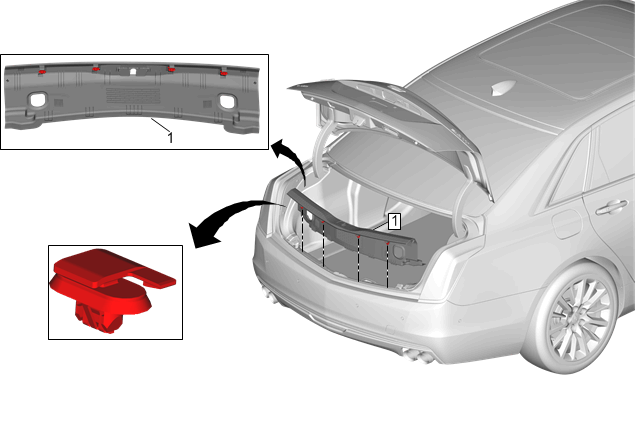

Fig 1: Rear End Trim Finish Panel
GM4255082Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Compartment Floor Panel Trim Replacement (Without HP9) Rear Compartment Floor Panel Trim Replacement (With HP9)
  2. Cargo Tie Down Loop Replacement
1 Rear End Trim Finish Panel
Procedure
Grasp and gently pull up on the rear end trim finish panel in order to release the integral retaining clips.
