Rear Body Structure Stop Lamp Replacement

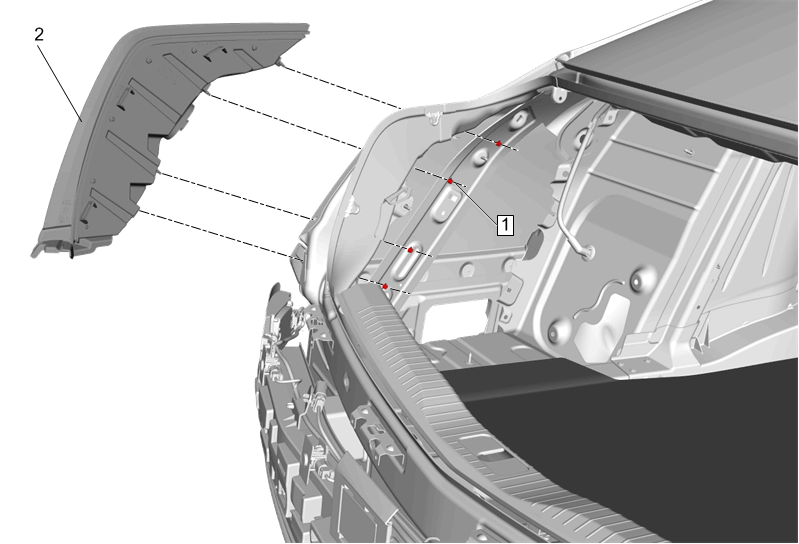

Fig 1: Rear Body Structure Stop Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Compartment Side Trim Replacement - Left Side (Without HP9)Rear Compartment Side Trim Replacement - Left Side (With HP9) , Rear Compartment Side Trim Replacement - Right Side (Without HP9) or Rear Compartment Side Trim Replacement - Right Side (With HP9) Back Body Opening Side Gutter Replacement Rear Bumper Fascia Replacement
1	Rear Body Structure Stop Lamp Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Rear Body Structure Stop Lamp

Callout

Component Name

Preliminary Procedures

Rear Body Structure Stop Lamp Nut [4x]

CAUTION: Refer to Fastener Caution .

Tighten
4.7 N.m (42 lb in)

Rear Body Structure Stop Lamp
