Rear Compartment Side Trim Replacement - Left Side (Without HP9)

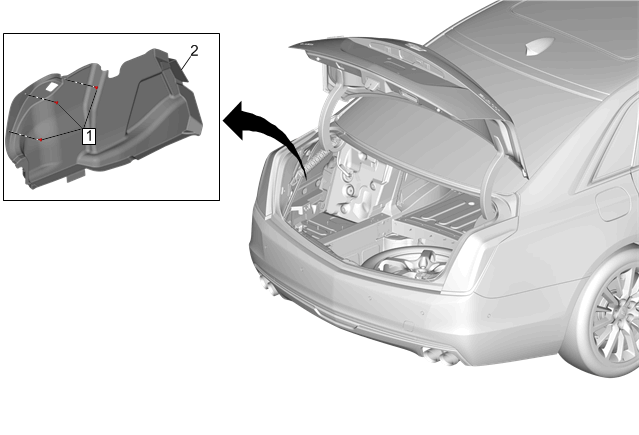

Fig 1: Rear Compartment Side Trim - Left Side (Without HP9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Compartment Floor Panel Trim Replacement (Without HP9) Rear End Trim Finish Panel Replacement Rear Compartment Front Trim Replacement (Without HP9)
1	Rear Compartment Side Trim Retainer [3x] Procedure Use a flat bladed plastic trim tool.
2	Rear Compartment Side Trim Procedure Disconnect electrical connections, if applicable. NOTE: Carefully manipulate the deck lid hinge opening of the side trim past the hinge cover.

Callout

Component Name

Preliminary Procedures

Rear Compartment Side Trim Retainer [3x]
Procedure
Use a flat bladed plastic trim tool.

Rear Compartment Side Trim
Procedure
Disconnect electrical connections, if applicable.

NOTE: Carefully manipulate the deck lid hinge opening of the side trim past the hinge cover.
