Back Body Opening Side Gutter Replacement

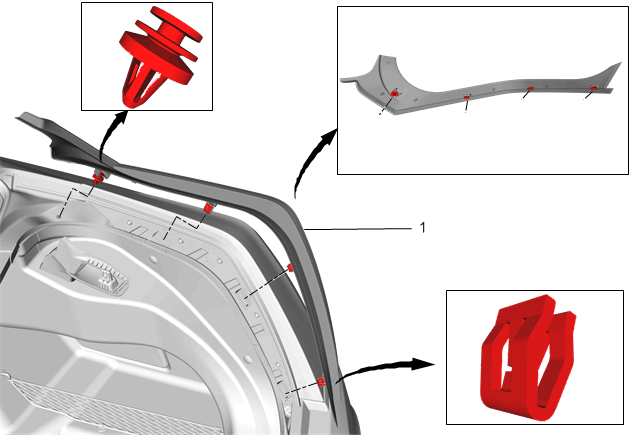

Fig 1: Back Body Opening Side Gutter
GM4290437Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Open the rear compartment lid.
1 Back Body Opening Side Gutter
Procedure
Using a trim type tool, release the 3 integral clips and the 1 retainers.
