Driver or Passenger Seat Back Cushion Frame Replacement (W2E)

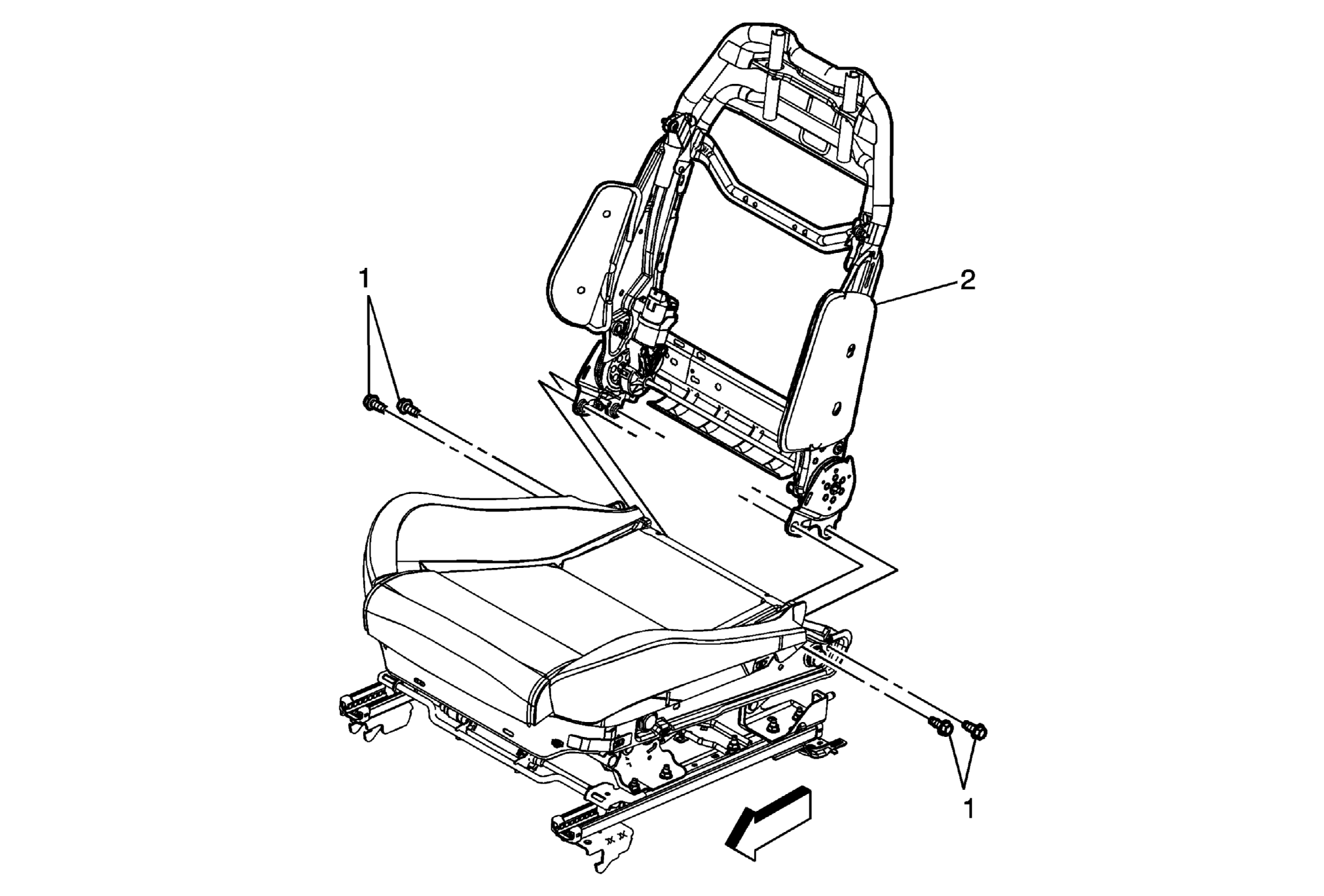

Fig 1: Identifying Driver Or Passenger Seat Back Cushion Frame (W2E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Removal and Installation - Bucket (W2E) . Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement (W2E) .
1	Front Seat Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Front Seat Back Cushion Frame Procedure Disconnect electrical connectors as needed. Remove the inflatable restraint side impact module. Refer to Front Seat Outboard Seat Back Airbag Replacement (W2E) . If replacing with a new front seat back frame, transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Front Seat Back Cushion Frame Bolt (Qty: 4)

CAUTION:

Tighten
50 N.m (37 lb ft)

Front Seat Back Cushion Frame

Procedure

Disconnect electrical connectors as needed.
Remove the inflatable restraint side impact module. Refer to Front Seat Outboard Seat Back Airbag Replacement (W2E) .
If replacing with a new front seat back frame, transfer components as necessary.
