Rear Seat Riser Finish Cover Replacement (Outboard)

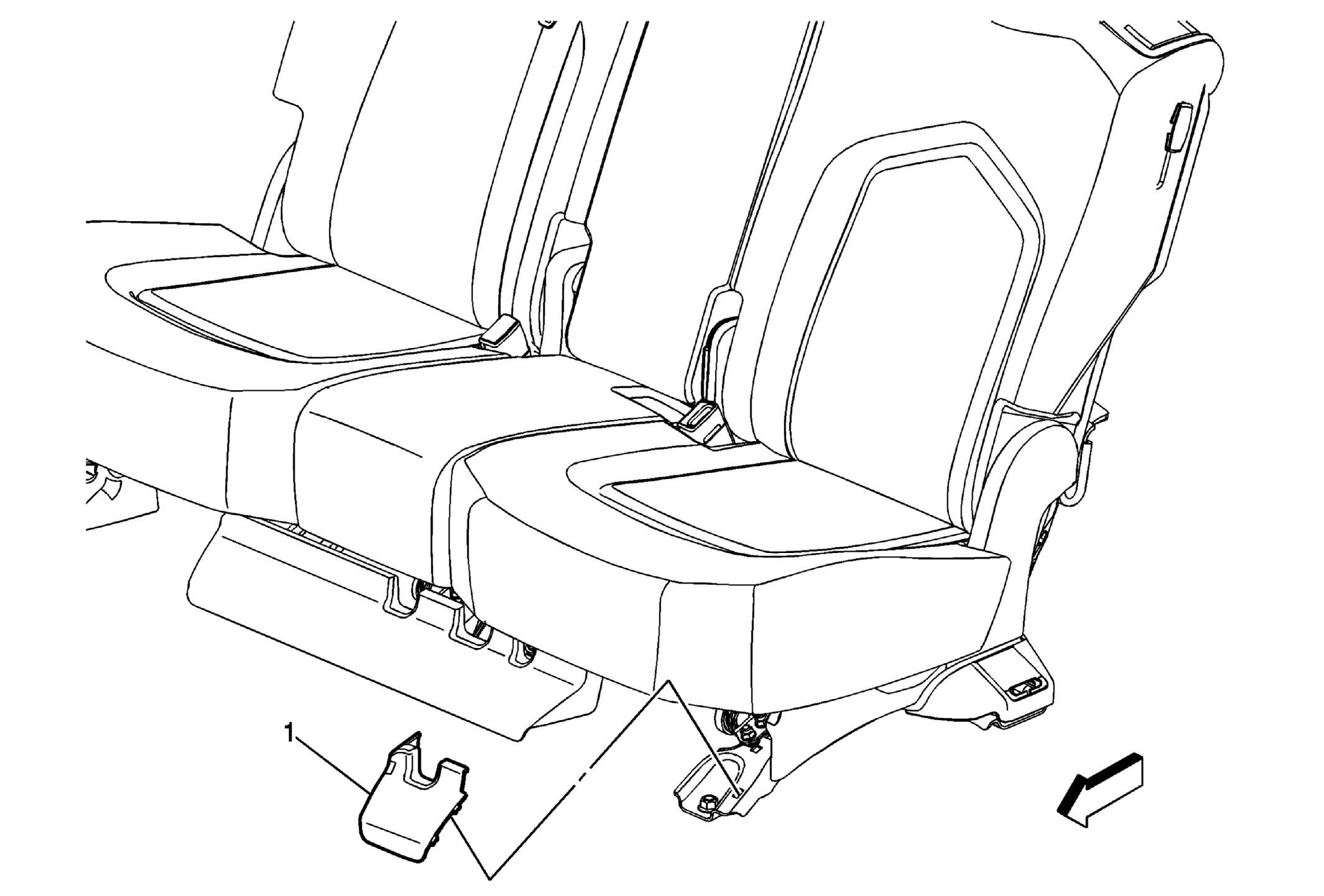

Fig 1: Identifying Rear Seat Riser Finish Cover (Outboard)
GM2219248Courtesy of GENERAL MOTORS COMPANY
Rear Seat Riser Finish Cover Replacement (Outboard)

Callout Component Name
1 Rear Seat Riser Finish Cover
Procedure
Pull the cover back at the bottom edge to disengage the retainers from the frame lower.
