Rear Seat Retractor Side Belt Replacement

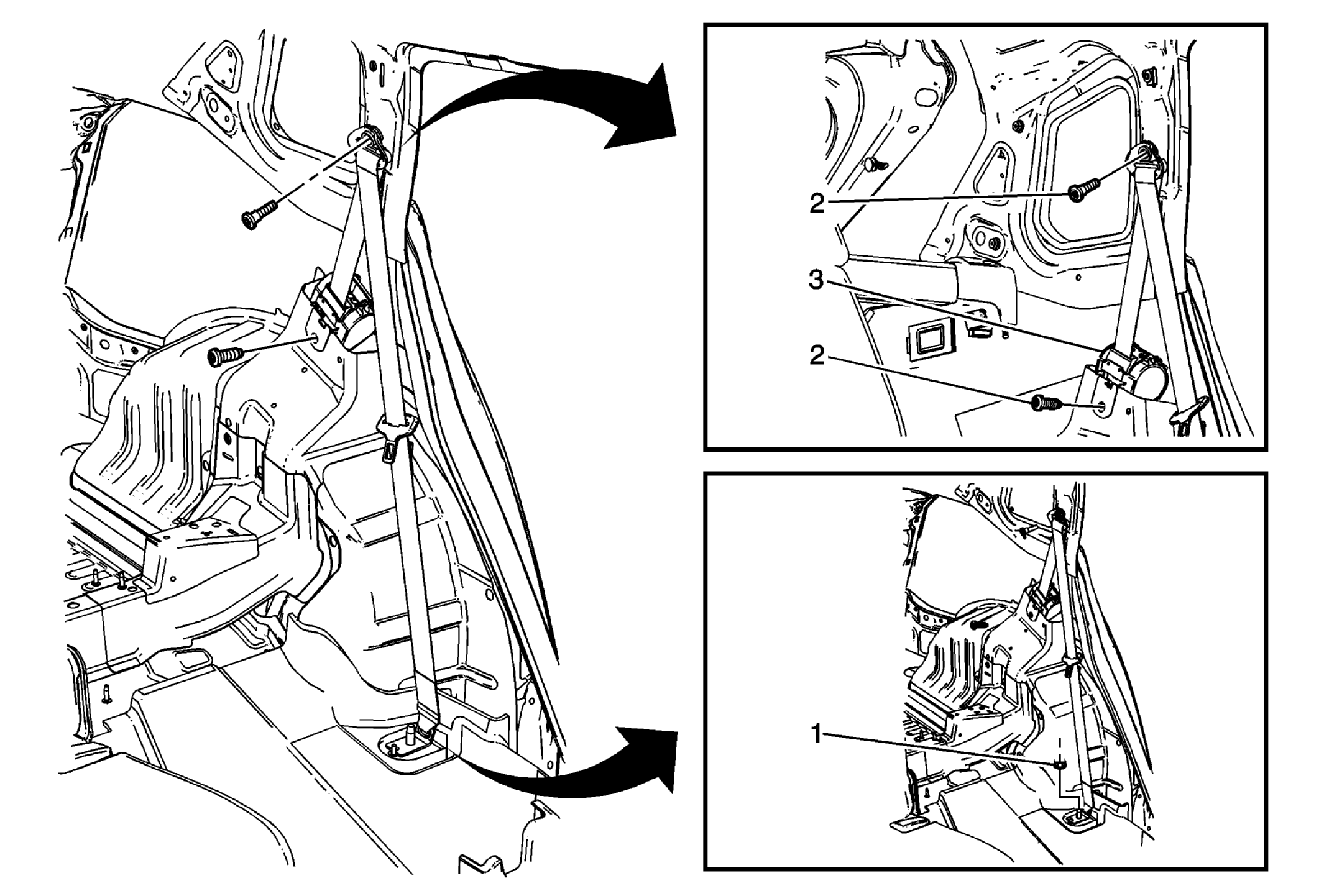

Fig 1: Identifying Rear Seat Retractor Side Belt & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat track rear outboard cover. Refer to Rear Seat Track Rear Outboard Cover Replacement . Remove the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .
1	Seat Shoulder Belt Anchor Plate Fastener CAUTION: Refer to Fastener Caution . Tighten 36 N.m (27 lb ft)
2	Rear Seat Belt Retractor Fastener (Qty: 2) Tighten 45 N.m (33 lb ft)
3	Rear Shoulder Seat Belt Retractor
