Rear Seat Riser Finish Cover Replacement (Center)

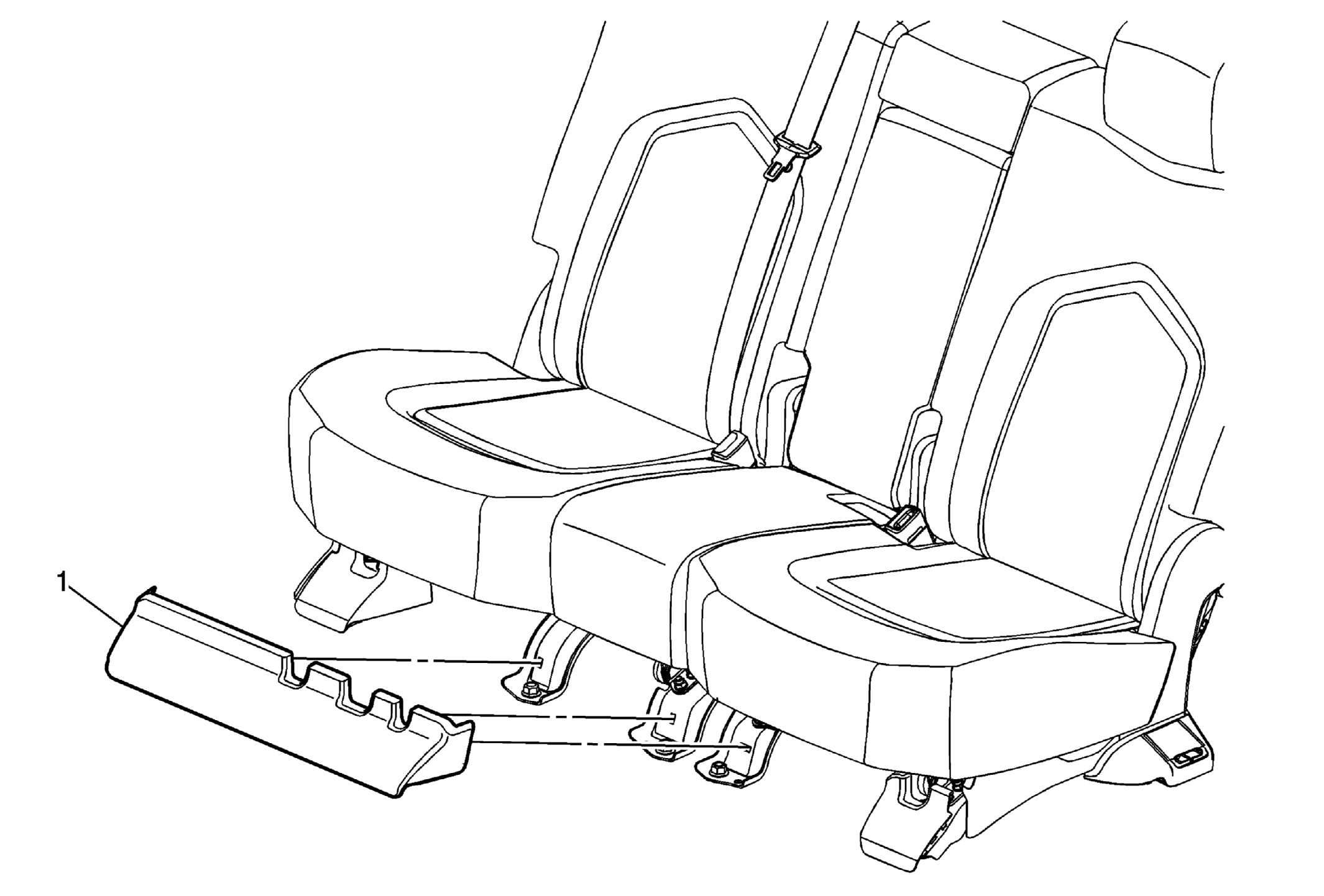

Fig 1: Identifying Rear Seat Riser Finish Cover (Center)
GM2219252Courtesy of GENERAL MOTORS COMPANY
Rear Seat Riser Finish Cover Replacement (Center)

Callout Component Name
1 Rear Seat Riser Finish Cover
Procedure
Pull the cover back at the bottom edge to disengage the retainers from the frame lower.
