Rear Seat Recliner Outer Finish Cover Replacement (60 Percent Seat)

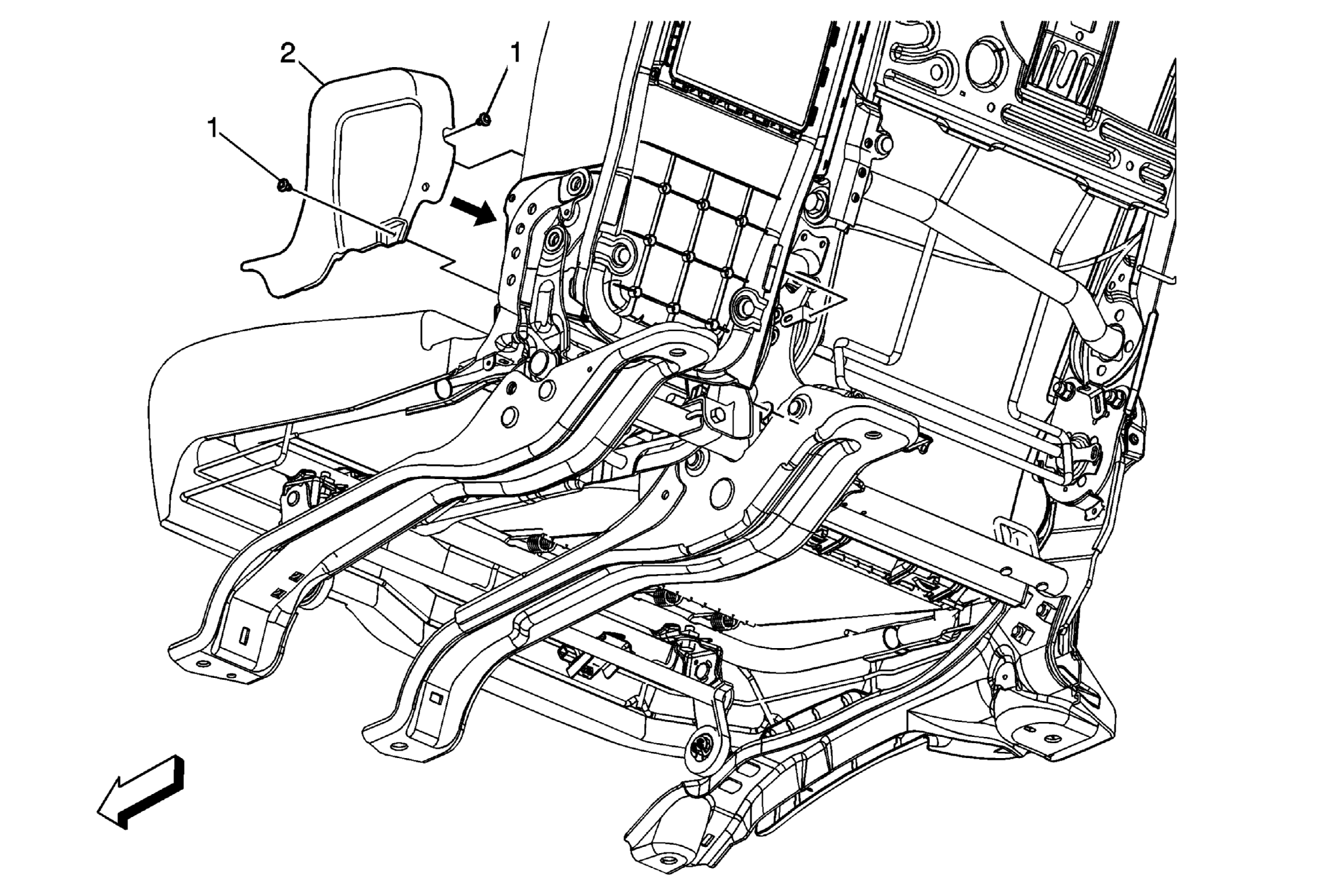

Fig 1: Identifying Rear Seat Recliner Outer Finish Cover (60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Recliner Outer Finish Cover Replacement (60 Percent Seat)

Callout	Component Name
Preliminary Procedure  Remove the rear seat back cushion center panel. Refer to Rear Seat Back Cushion Center Panel Replacement .
1	Rear Seat Recliner Outer Finish Cover Retainer (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Rear Seat Recliner Outer Finish Cover
