Rear Seat Track Rear Outboard Cover Replacement

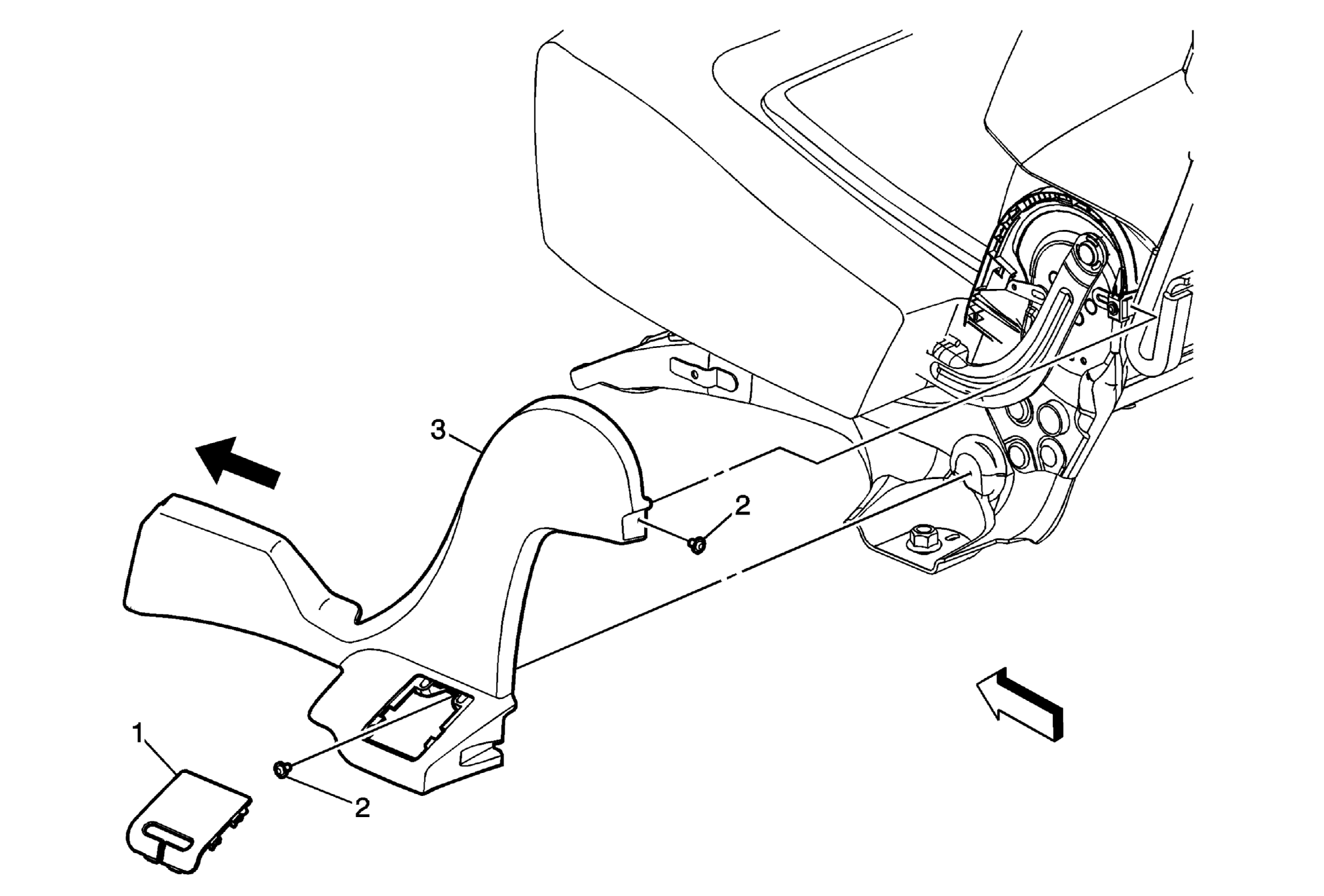

Fig 1: Identifying Rear Seat Track Rear Outboard Cover & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Removal and Installation .
1	Rear Seat Track Cover
2	Rear Seat Track Rear Outboard Cover Retainer (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
3	Rear Seat Track Rear Outboard Cover Procedure Remove the track cover by sliding the track cover forward off the frame clip. Tumble seat to gain access to service notch/hole to disengage outer cover from the inner cover.
