Rear Seat Recliner Inner Finish Cover Replacement

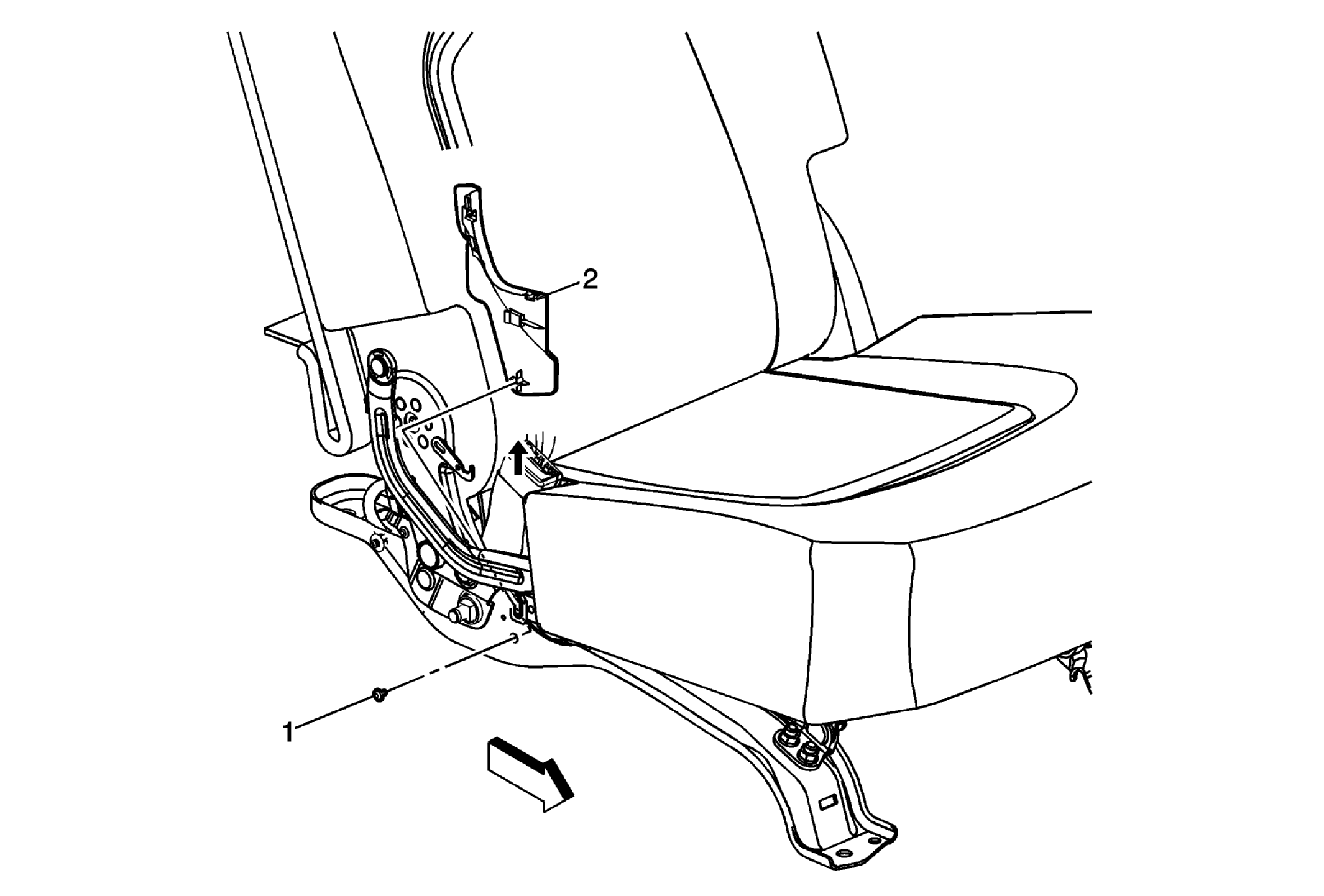

Fig 1: Identifying Rear Seat Recliner Inner Finish Cover & Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Removal and Installation Remove the rear seat recliner outer finish cover. Refer to Rear Seat Recliner Outer Finish Cover Replacement (60 Percent Seat) , Rear Seat Recliner Outer Finish Cover Replacement (40 Percent Seat) .
1	Rear Seat Recliner Inner Finish Cover Retainer CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Rear Seat Recliner Inner Finish Cover TIP: Pull up to release finish cover from the seat cushion frame.

Callout

Component Name

Preliminary Procedure

Rear Seat Recliner Inner Finish Cover Retainer

CAUTION:

Tighten
2 N.m (18 lb in)

Rear Seat Recliner Inner Finish Cover
TIP: Pull up to release finish cover from the seat cushion frame.
