Air Inlet Grille Panel Replacement

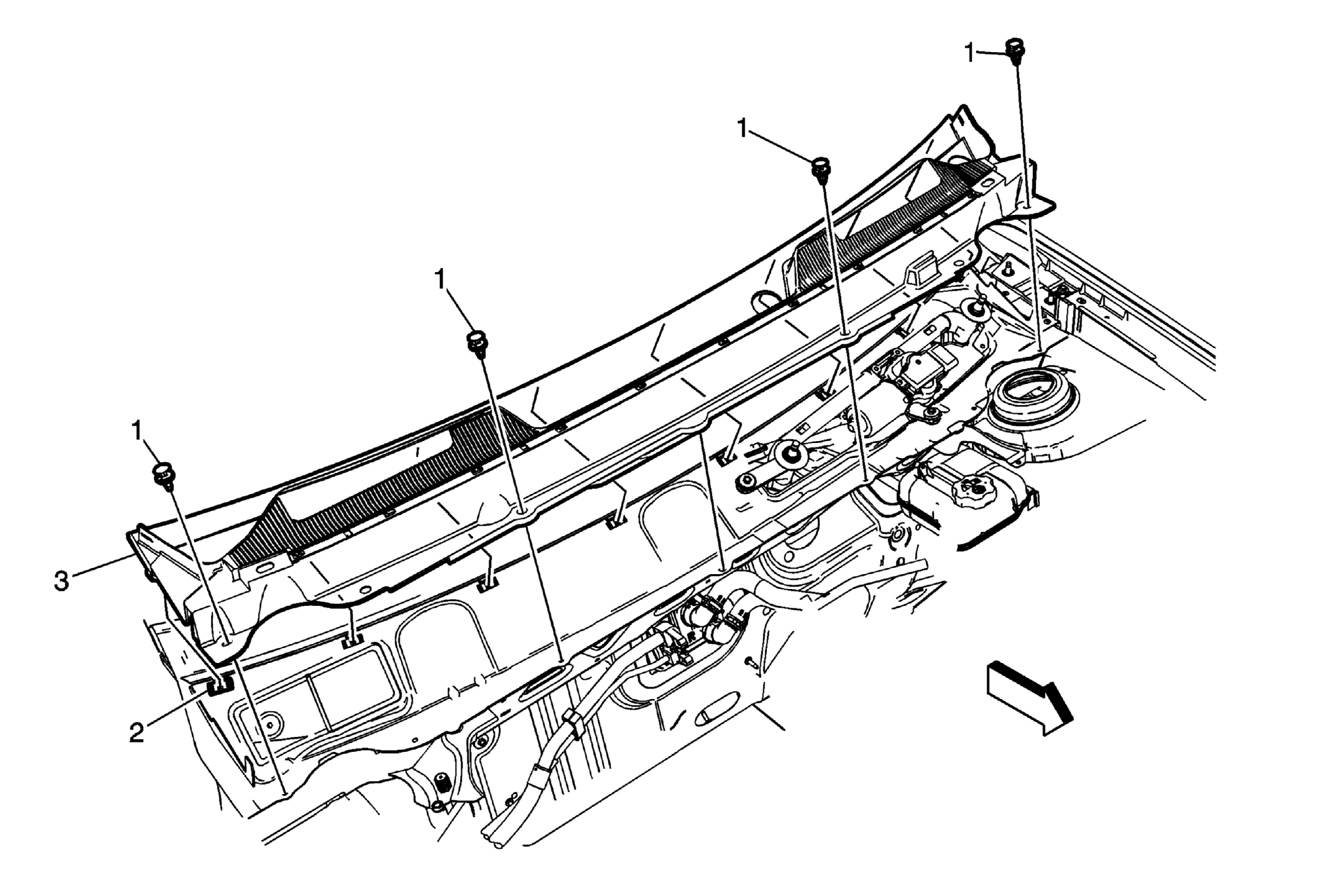

Fig 1: View Of Air Inlet Grille Panel, Clips & Retainers
GM2224345Courtesy of GENERAL MOTORS COMPANY
Air Inlet Grille Panel Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the front compartment side sight shields. Refer to Front Compartment Side Sight Shield Replacement .
  2. Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement .
  3. Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement .
  4. Remove the rear hood weather-strip. Refer to Hood Rear Weatherstrip Replacement .
1 Air Inlet Grille Panel Retainer (Qty: 4)
2 Air Inlet Grille Panel Clip (Qty: 8)
3 Air Inlet Grille Panel
