Hood Rear Weatherstrip Replacement
Hood Rear Weatherstrip Replacement
| Callout | Component Name |
|---|---|

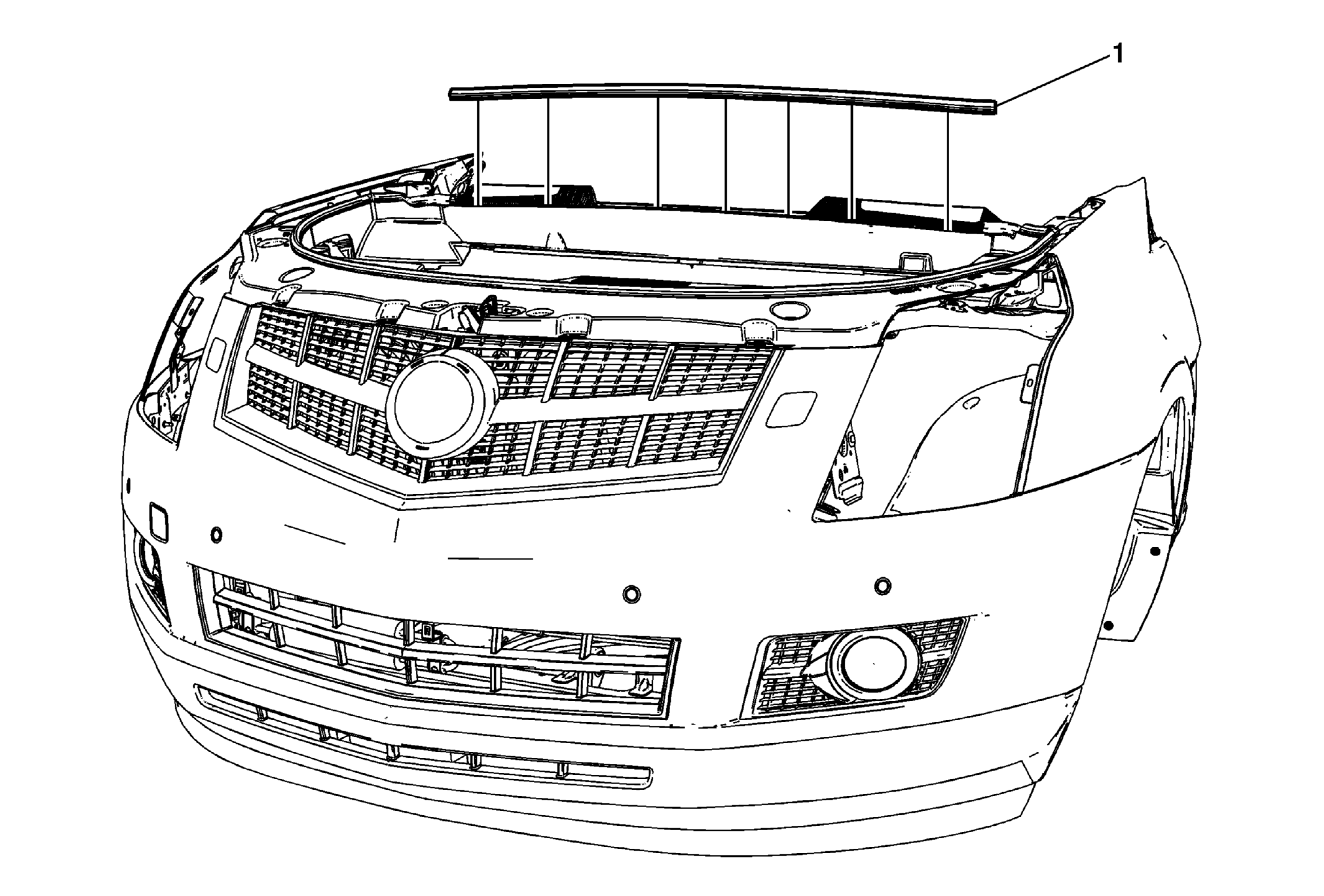

| 1 | Hood Rear Weatherstrip Procedure The hood rear weatherstrip is held in place with 7 plastic retainers that are part of the weatherstrip. Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille. |
