Air Inlet Grille Panel Extension Replacement

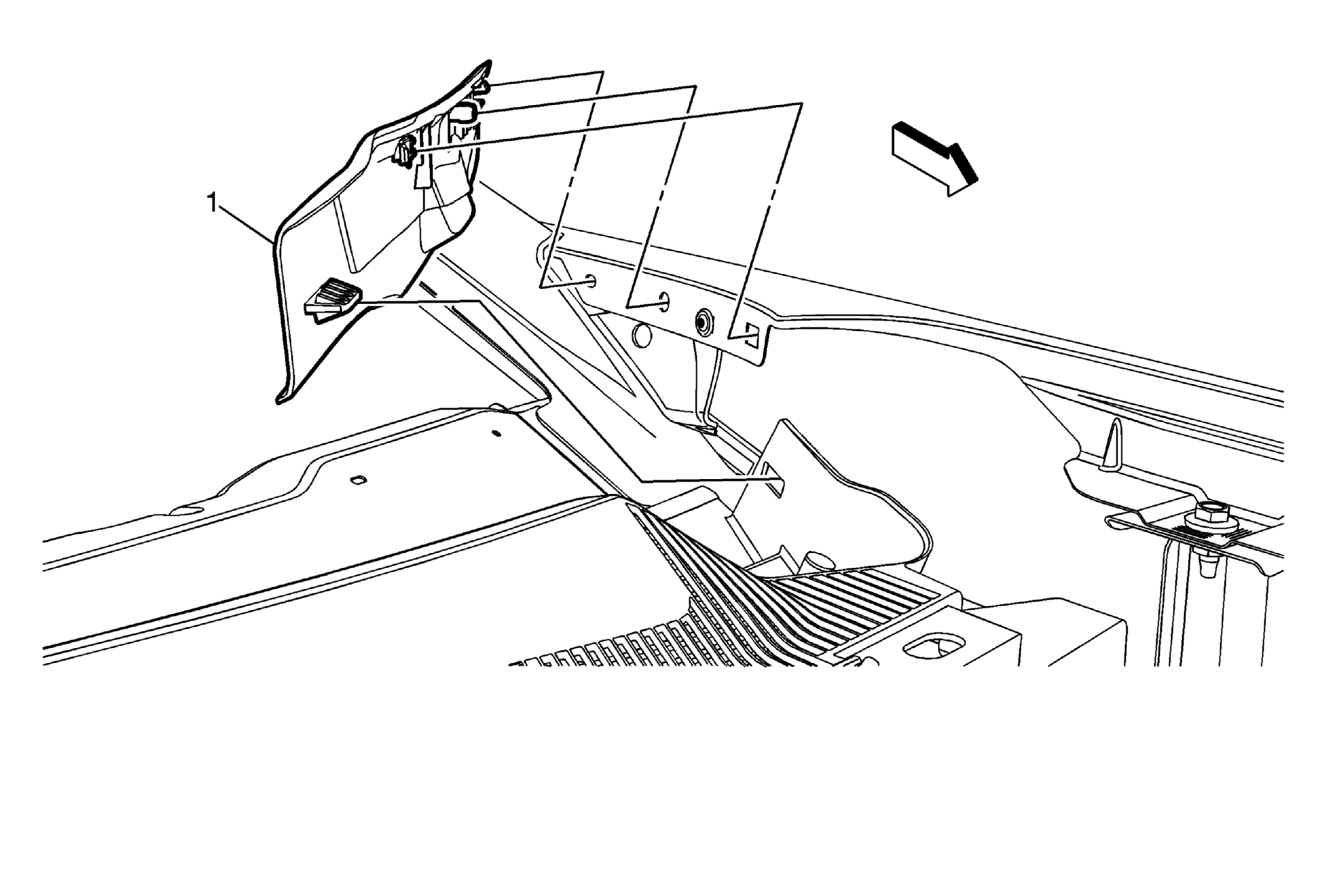

Fig 1: View Of Air Inlet Grille Panel Extension

Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Extension Replacement

Callout	Component Name
Preliminary Procedure  Open the hood in order to access the air inlet grille panel extension.
1	Air Inlet Grille Panel Extension Procedure  Release the tabs securing the air inlet grille panel extension to the air inlet grille panel assembly and fender.
