Front Compartment Side Sight Shield Replacement

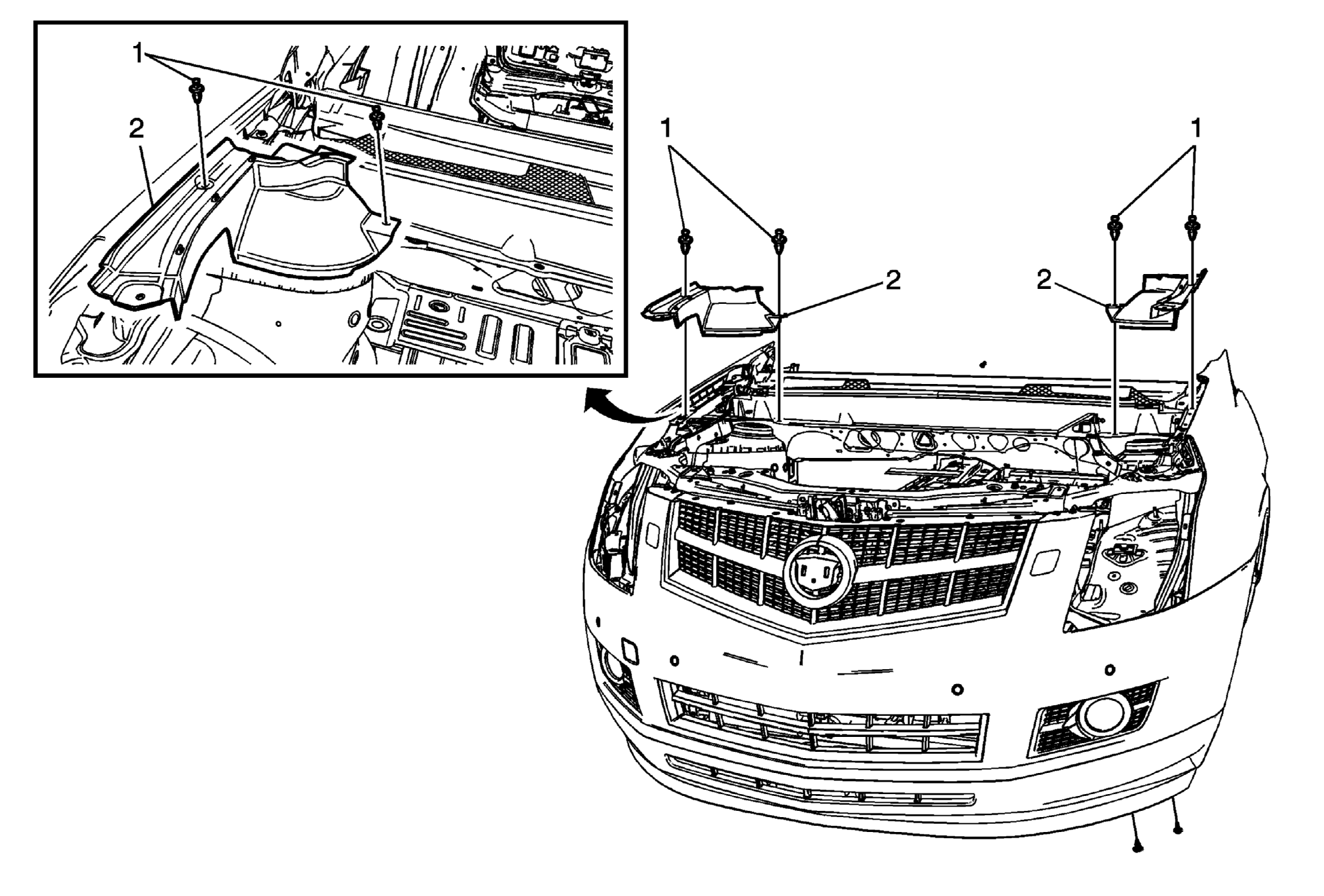

Fig 1: View Of Front Compartment Side Sight Shield & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Compartment Side Sight Shield Push-In Retainer (Qty: 4)
2	Front Compartment Side Sight Shield (Qty: 2) Procedure Reposition the hood front seal ends that are held in place with 4 plastic retainers that are part of the weatherstrip. Carefully pull the weatherstrip to the right/left to release from the retainers on the side sight shield. Remove the last push-in retainer from the front sight shield. Lift the side sight shield upward in the back and slide rearwards from under the end of the front sight shield.

Callout

Component Name

Front Compartment Side Sight Shield Push-In Retainer (Qty: 4)

Front Compartment Side Sight Shield (Qty: 2)

Procedure

Reposition the hood front seal ends that are held in place with 4 plastic retainers that are part of the weatherstrip. Carefully pull the weatherstrip to the right/left to release from the retainers on the side sight shield.
Remove the last push-in retainer from the front sight shield.
Lift the side sight shield upward in the back and slide rearwards from under the end of the front sight shield.
