Rear Seat Head Restraint Guide Replacement (Center)

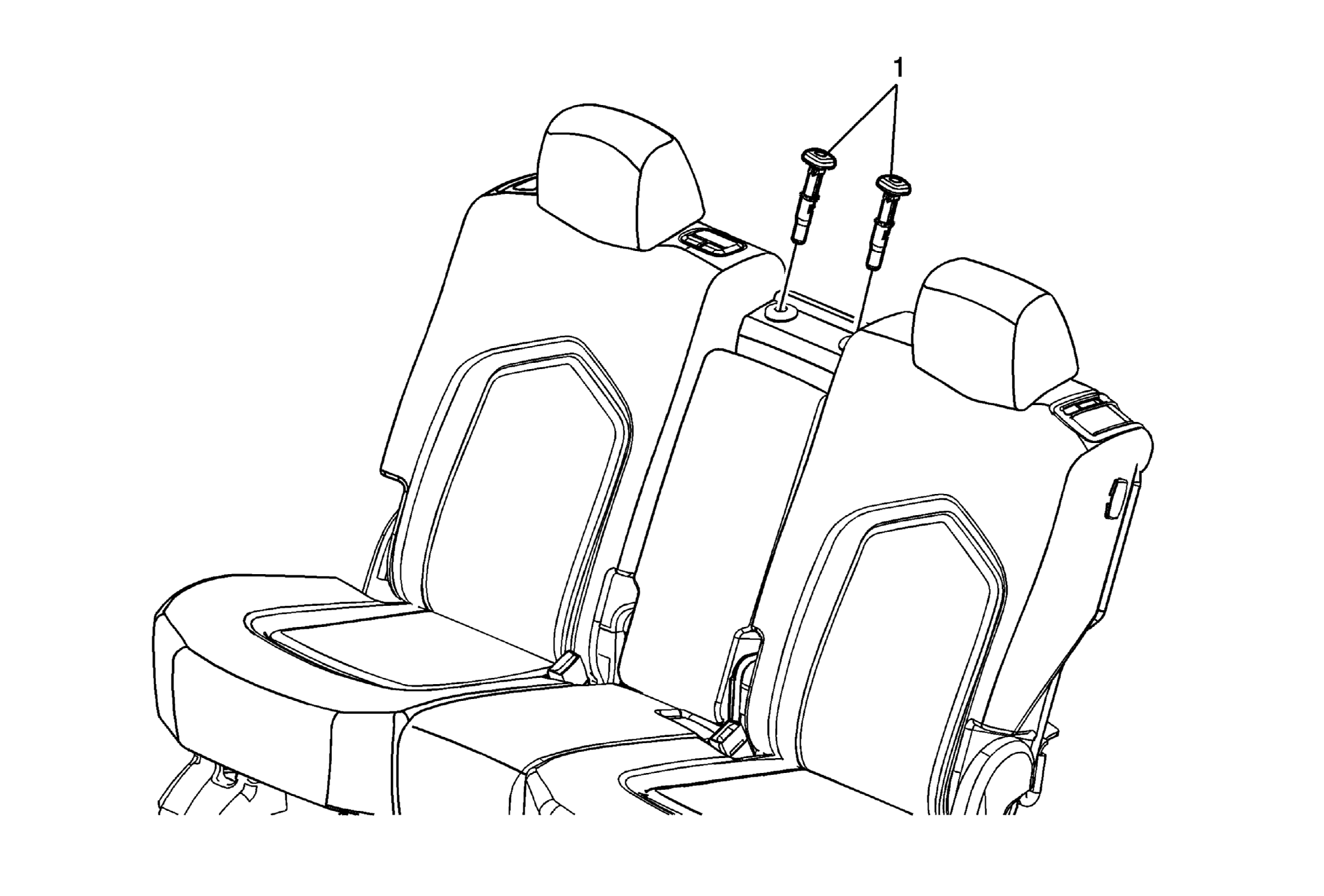

Fig 1: Identifying Rear Seat Head Restraint Guide (Center)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (Outboard) , Rear Seat Head Restraint Replacement (Center) Remove the rear seat back cushion fille panel. Refer to Rear Seat Back Cushion Filler Panel Replacement (40 Percent Seat) , Rear Seat Back Cushion Filler Panel Replacement (60 Percent Seat)
1	Rear Seat Center Head Restraint Guide Procedure Push inward on both sides of the guide slot tabs, while pulling upward to remove the guide from the seat back center frame.

Callout

Component Name

Preliminary Procedures

Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (Outboard) , Rear Seat Head Restraint Replacement (Center)
Remove the rear seat back cushion fille panel. Refer to Rear Seat Back Cushion Filler Panel Replacement (40 Percent Seat) , Rear Seat Back Cushion Filler Panel Replacement (60 Percent Seat)

Rear Seat Center Head Restraint Guide
Procedure
Push inward on both sides of the guide slot tabs, while pulling upward to remove the guide from the seat back center frame.
