Rear Seat Head Restraint Replacement (Center)

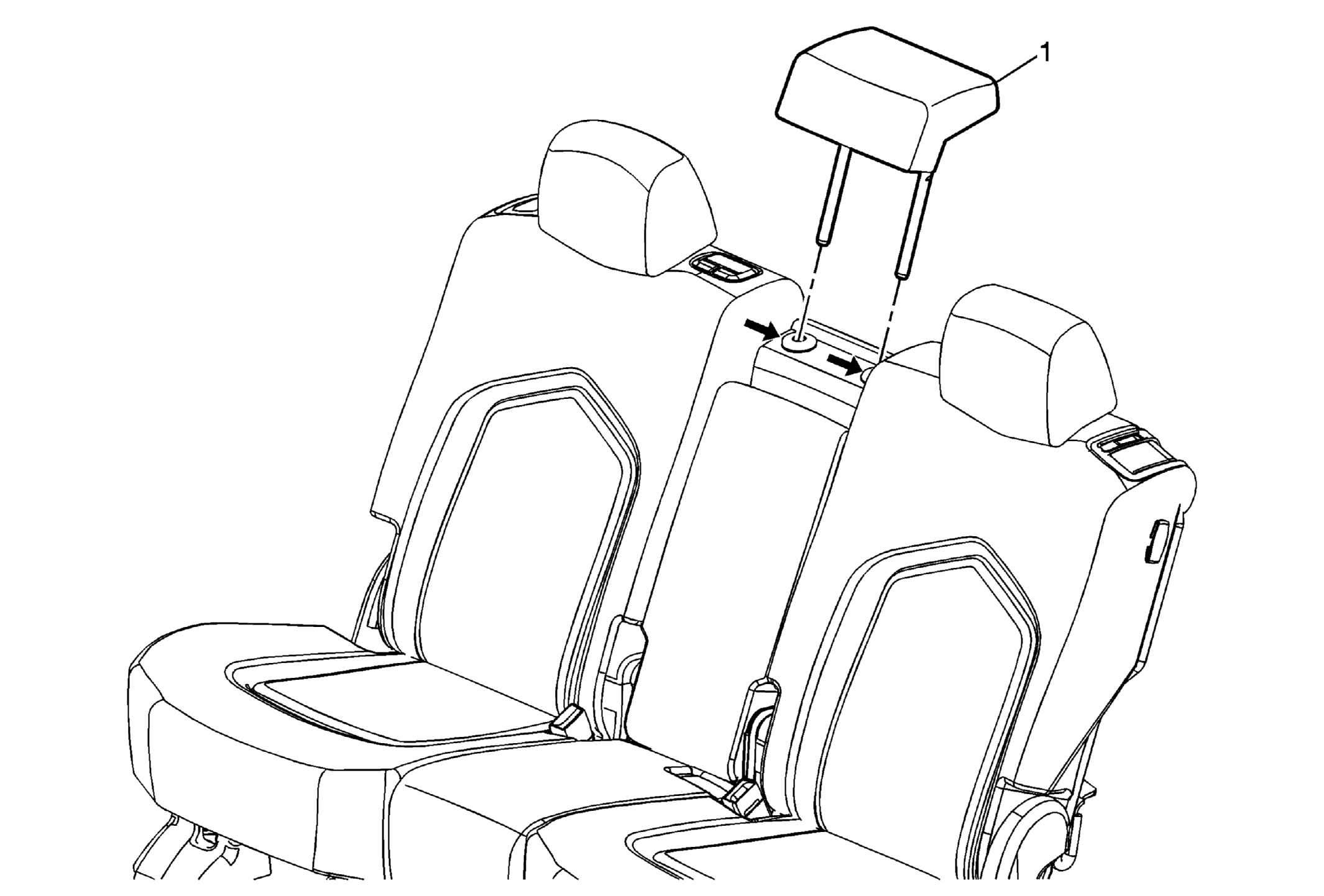

Fig 1: View Of Rear Seat Head Restraint (Center)
GM2235970Courtesy of GENERAL MOTORS COMPANY
Rear Seat Head Restraint Replacement (Center)

Callout Component Name
1 Rear Seat Center Head Restraint

Procedure

  1. Depress the large button on the Center head restraint guide and raise the head restraint to the full up position.
  2. Depress the small button on the opposite head restraint guide and pull upward to remove from the seat.
