Rear Seat Back Cushion Frame Replacement

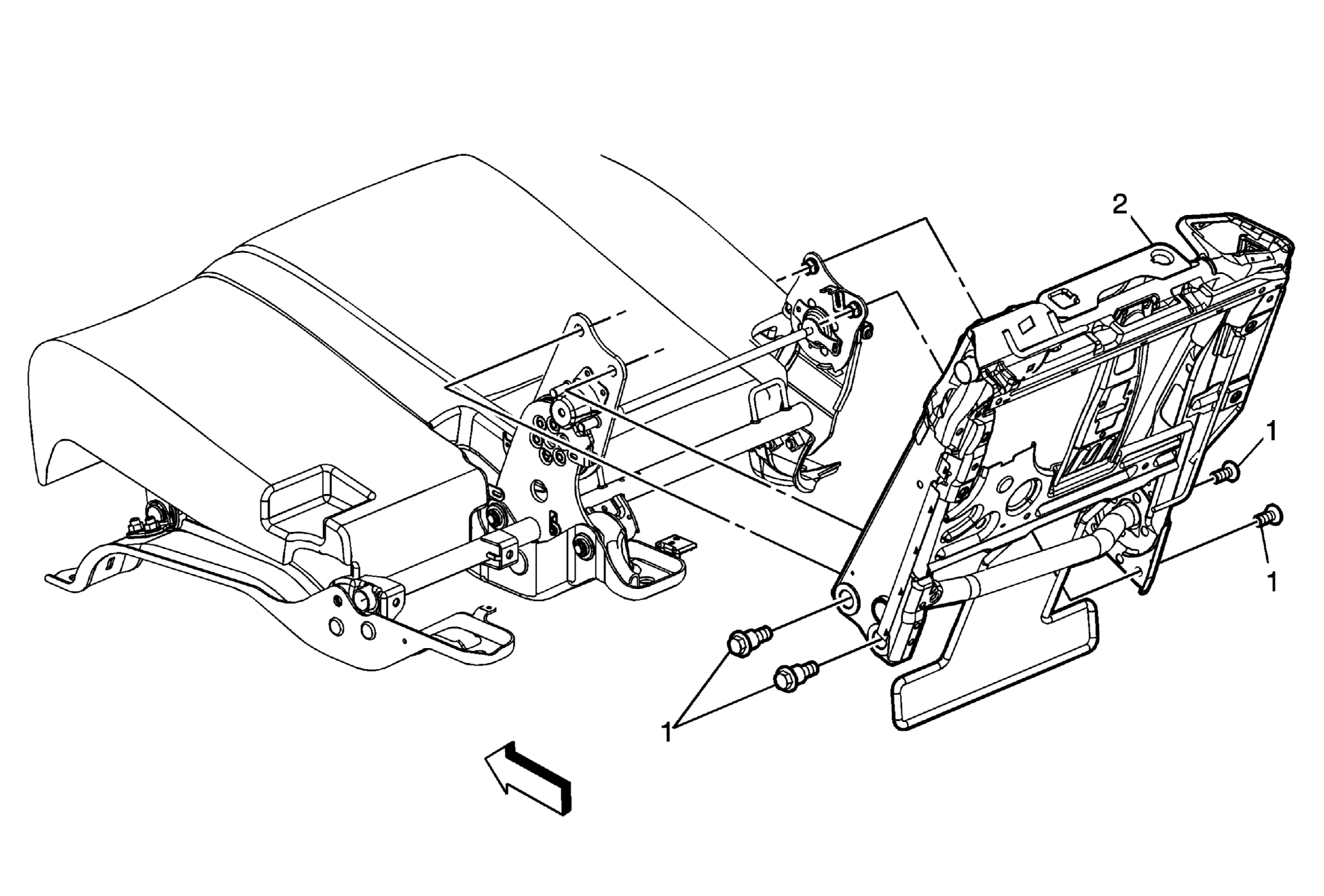

Fig 1: Identifying Rear Seat Back Cushion Frame & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat) Remove the rear seat back cushion center panel. Refer to Rear Seat Back Cushion Center Panel Replacement .
1	Rear Seat Back Cushion Frame Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 55 N.m (40 lb ft)
2	Rear Seat Back Cushion Frame Procedure Remove rear seat cushion frame fasteners. Refer to Rear Seat Cushion Frame Replacement (60 Percent Seat)

Callout

Component Name

Preliminary Procedure

Remove the rear seat cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat)
Remove the rear seat back cushion center panel. Refer to Rear Seat Back Cushion Center Panel Replacement .

Rear Seat Back Cushion Frame Fastener (Qty: 4)

CAUTION:

Tighten
55 N.m (40 lb ft)

Rear Seat Back Cushion Frame
Procedure
Remove rear seat cushion frame fasteners. Refer to Rear Seat Cushion Frame Replacement (60 Percent Seat)
