Generator Drive Belt Replacement

WARNING: This page is about a different variant/trim than selected.

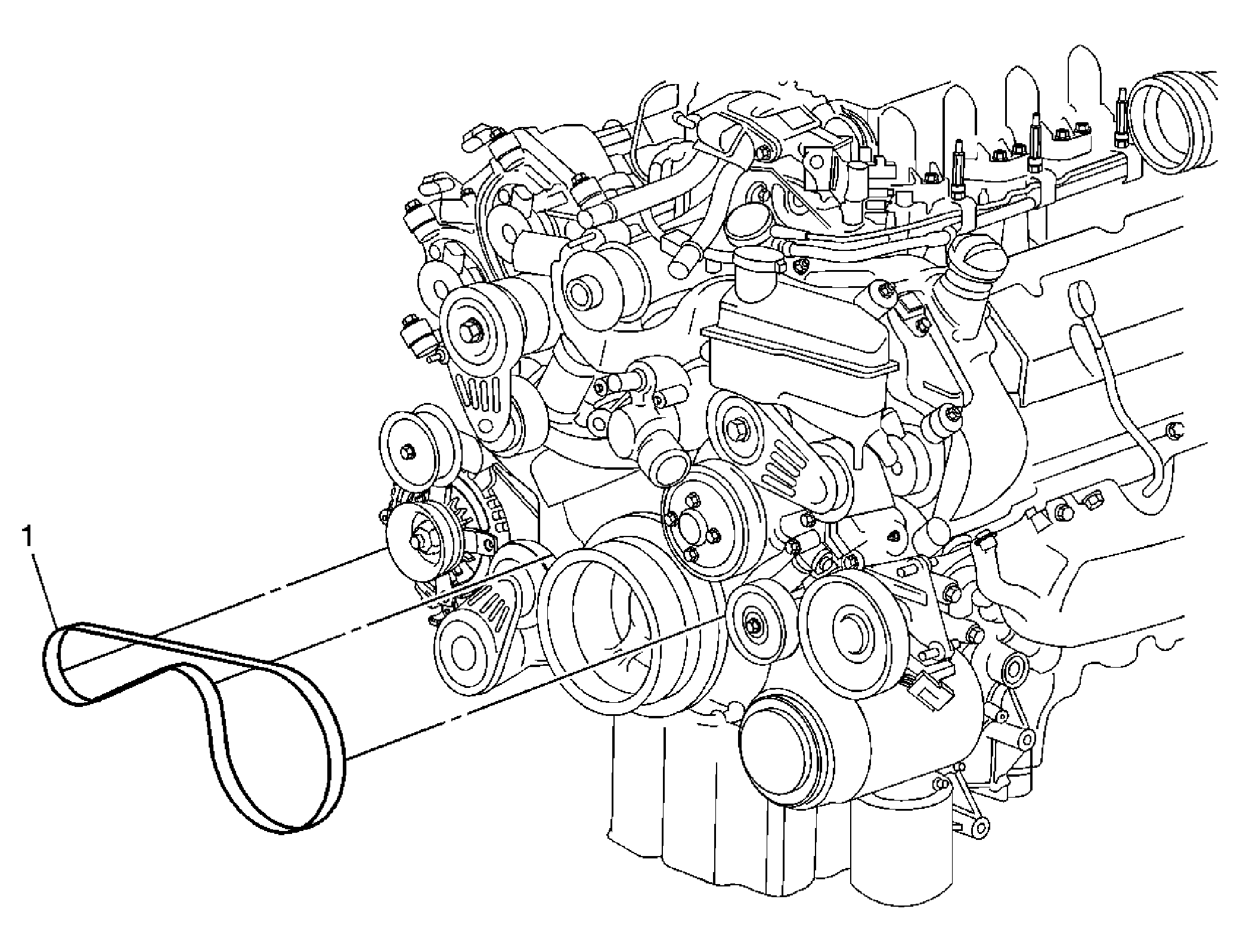

Fig 1: Generator Drive Belt Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement . Remove the front section of the supercharger inlet duct assembly. Refer to Supercharger Inlet Duct Assembly Replacement . Remove the supercharger drive belt. Refer to Supercharger Belt Replacement . Remove the air conditioning, power steering and water pump drive belt. Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement . Remove the charge air cooler coolant pump. Refer to Charge Air Cooler Coolant Pump Replacement .
1	Generator Drive Belt Tip: Rotate the tensioner in a clockwise direction. Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement .
Remove the front section of the supercharger inlet duct assembly. Refer to Supercharger Inlet Duct Assembly Replacement .
Remove the supercharger drive belt. Refer to Supercharger Belt Replacement .
Remove the air conditioning, power steering and water pump drive belt. Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
Remove the charge air cooler coolant pump. Refer to Charge Air Cooler Coolant Pump Replacement .

Generator Drive Belt
Tip:

Rotate the tensioner in a clockwise direction.
Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.
