Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP. Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement
| Callout |
Component Name |
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. Preliminary Procedures
- Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement .
- Remove the front section of the supercharger inlet duct assembly. Refer to Supercharger Inlet Duct Assembly Replacement
.
- Remove the supercharger drive belt. Refer to Supercharger Belt Replacement .
|
| 1 |

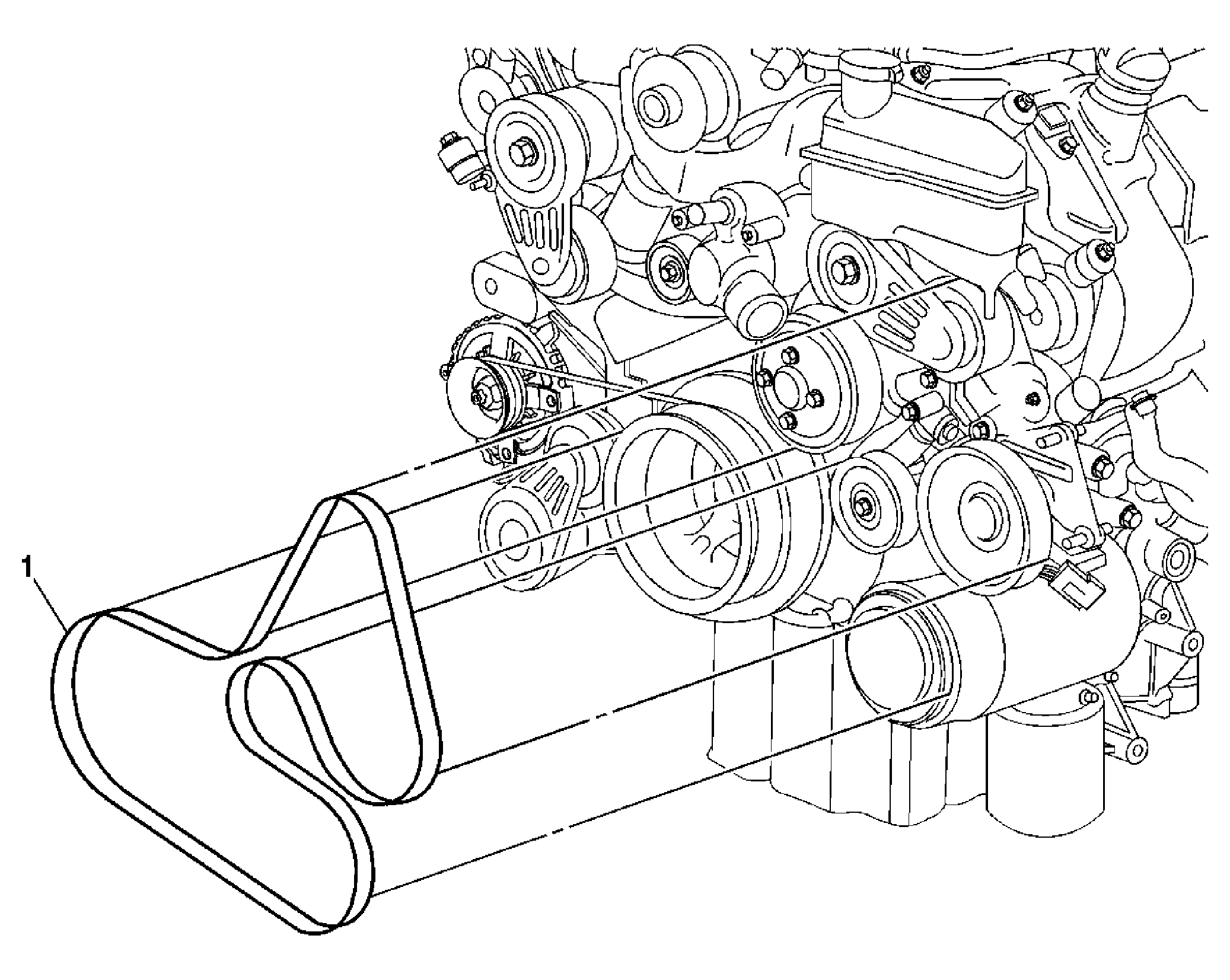

Air Conditioning, Power Steering, and Water Pump Drive Belt
Tip:
- Rotate the tensioner assembly clockwise and remove the belt from the water pump pulley.
- Remove the drive belt from behind the tensioner assembly. Access the belt from the side of the tensioner pulley in the location of the lower power steering reservoir mounting nut.
- Allow the tensioner to return to the relaxed position and remove the belt
- Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.
|
