Supercharger Belt Replacement

WARNING: This page is about a different variant/trim than selected.

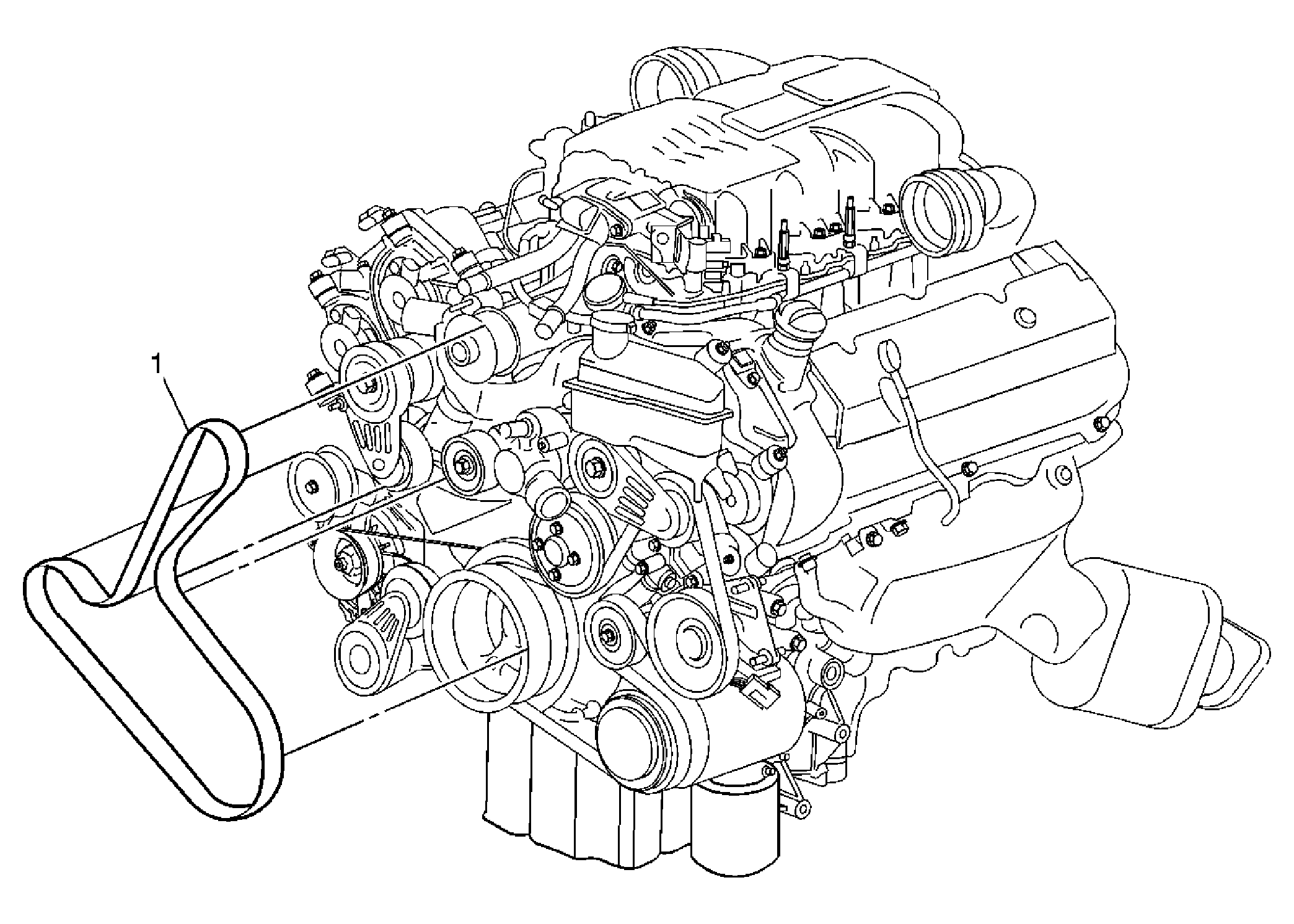

Fig 1: Supercharger Drive Belt Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement . Remove the front section of the supercharger inlet duct assembly. Refer to Supercharger Inlet Duct Assembly Replacement .
1	Supercharger Drive Belt Tip: Use the EN-47913 serpentine belt tool to rotate the tensioner in a clockwise direction. See Special Tools . Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement .
Remove the front section of the supercharger inlet duct assembly. Refer to Supercharger Inlet Duct Assembly Replacement .

Supercharger Drive Belt
Tip:

Use the EN-47913 serpentine belt tool to rotate the tensioner in a clockwise direction. See Special Tools .
Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.
