Intake Manifold Sight Shield Replacement

WARNING: This page is about a different variant/trim than selected.

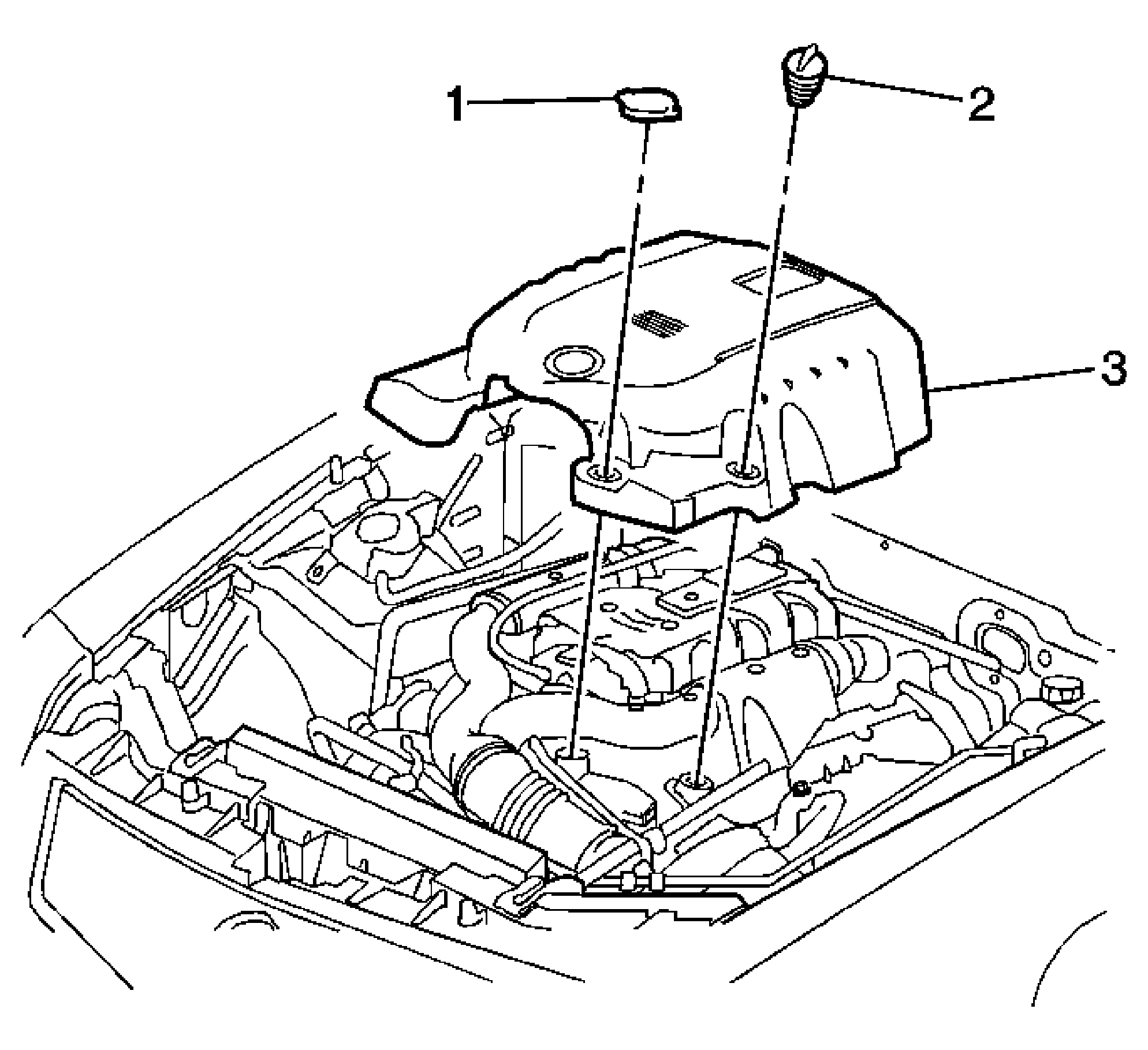

Fig 1: Intake Manifold Sight Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right and left engine compartment sight shields. Refer to Front Compartment Sight Shields Replacement . Remove the cross vehicle brace. Refer to Cross Vehicle Brace Replacement (DX) .
1	Power Steering Reservoir Cap
2	Engine Oil Fill Cap
3	Intake Manifold Sight Shield Tip: Pull the sight shield straight up to disengage the shield from the ball studs.
