Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Crankshaft Balancer
    GM1614617Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the oil pump drive to crankshaft balancer friction washer (3) is installed.
  2. Install the crankshaft balancer (2). Refer to Crankshaft Balancer Installation .
  3. Install the charge air cooler cooling pump and hoses. Refer to Charge Air Cooler Coolant Pump Replacement .
  4. Remove the EN-48018  flywheel holding tool.
  5. Install the transmission bell housing inspection hole cover.
  6. Install the front air deflector. Refer to Front Air Deflector Replacement .
  7. Lower the vehicle.
  8. Install the engine cooling fan assembly. Refer to Engine Cooling Fan Replacement (LC3) .

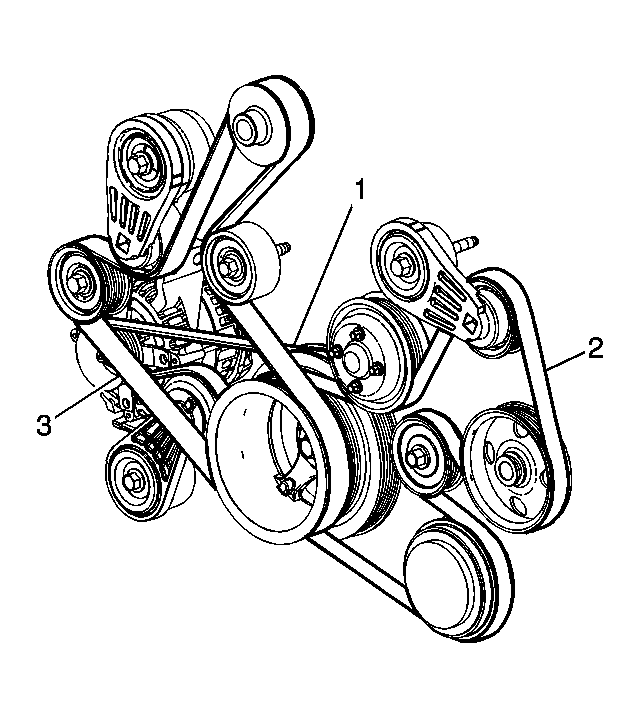

    9. Fig 2: Generator Drive Belt
    GM1616175Courtesy of GENERAL MOTORS CORP.
  9. Install the generator drive belt (1). Refer to Generator Drive Belt Replacement .
  10. Install the air conditioning, power steering, and water pump drive belt (2). Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
  11. Install the supercharger drive belt (3). Refer to Supercharger Belt Replacement .
  12. Fill the charge air cooling system. Refer to Charge Air Cooling System Draining and Filling (Static Fill) or Charge Air Cooling System Draining and Filling (Vac N Fill) .
