Instrument Cluster Trim Panel Replacement (Left Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

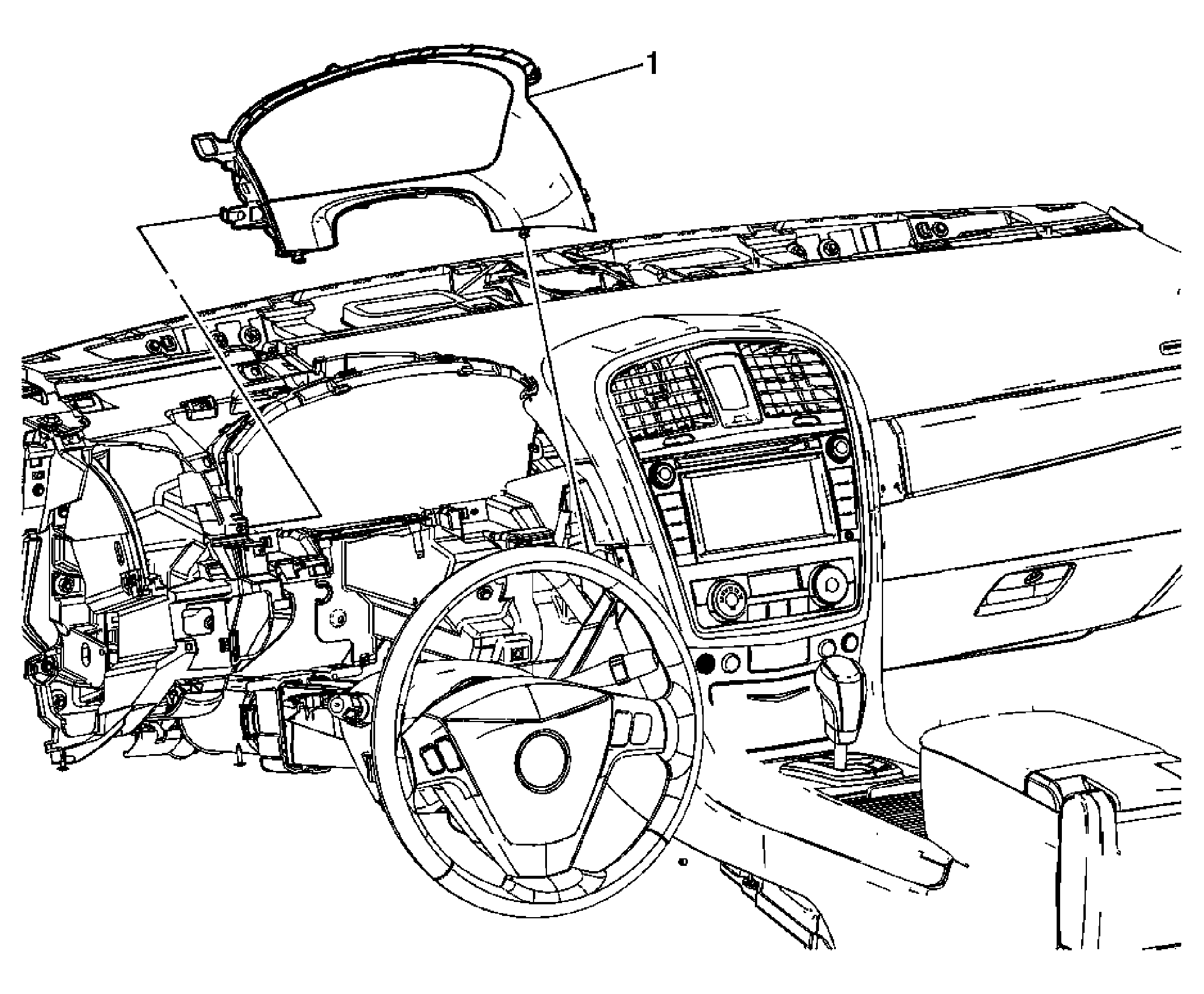

Fig 1: Instrument Cluster Trim Panel (Left Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel left trim panel. Refer to Instrument Panel Trim Panel Replacement - Left Side (Left Hand Drive) . Remove the knee bolster bracket assembly. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) or Driver Knee Bolster Bracket Replacement (Right Hand Drive) . Remove the nuts securing the steering column to the instrument panel assembly and lower the steering column. Refer to Steering Column Replacement .
1	Instrument Panel Cluster Trim Plate Assembly Procedure: Grasp the left side of the trim plate and pull rearward while also pulling to the left releasing the trim plate from the instrument panel assembly.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel left trim panel. Refer to Instrument Panel Trim Panel Replacement - Left Side (Left Hand Drive) .
Remove the knee bolster bracket assembly. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) or Driver Knee Bolster Bracket Replacement (Right Hand Drive) .
Remove the nuts securing the steering column to the instrument panel assembly and lower the steering column. Refer to Steering Column Replacement .

Instrument Panel Cluster Trim Plate Assembly
Procedure:
Grasp the left side of the trim plate and pull rearward while also pulling to the left releasing the trim plate from the instrument panel assembly.
