Driver Knee Bolster Bracket Replacement (Right Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

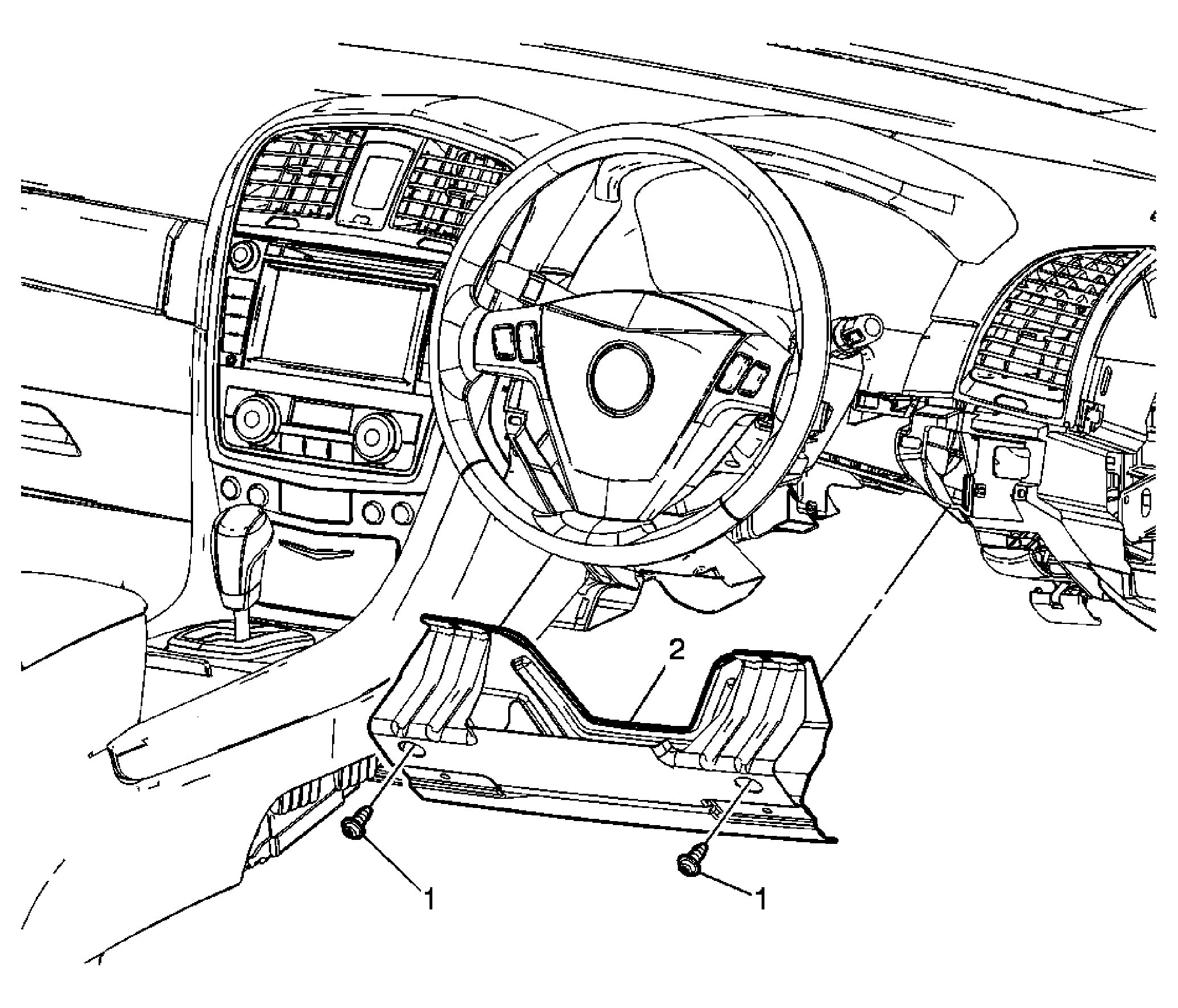

Fig 1: Driver Knee Bolster Bracket (Right Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel knee bolster trim panel assembly. Refer to Knee Bolster Replacement (Left Hand Drive) or Knee Bolster Replacement (Right Hand Drive) .
1	Instrument Panel Knee Bolster Bracket Assembly Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Instrument Panel Knee Bolster Bracket Assembly
