Driver Knee Bolster Bracket Replacement (Left Hand Drive)
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

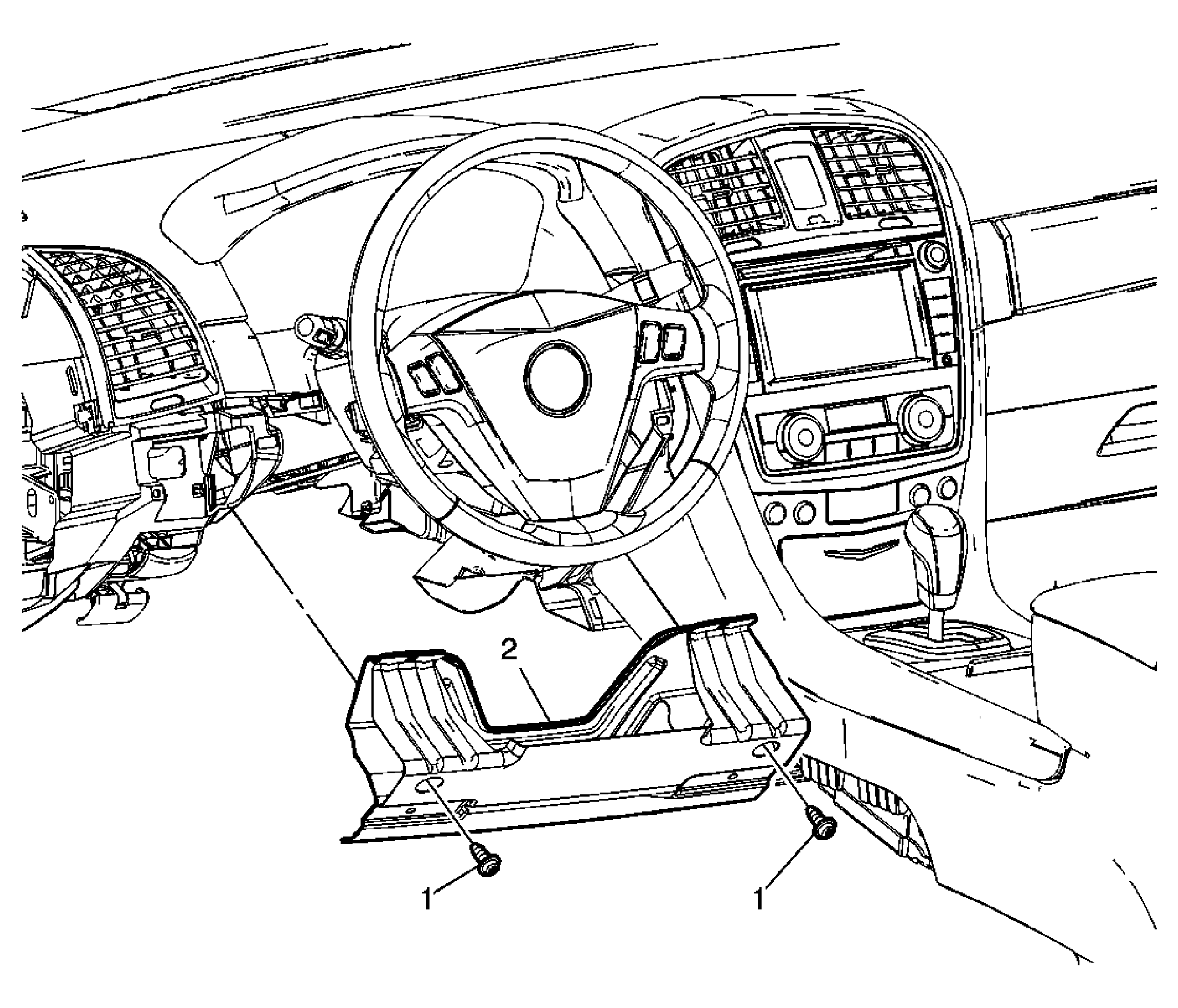

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel knee bolster trim panel assembly. Refer to Knee Bolster Replacement (Left Hand Drive) or Knee Bolster Replacement (Right Hand Drive) . |
|
| 1 | Instrument Panel Knee Bolster Bracket Assembly Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Instrument Panel Knee Bolster Bracket Assembly |
