Instrument Panel Trim Panel Replacement - Left Side (Left Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

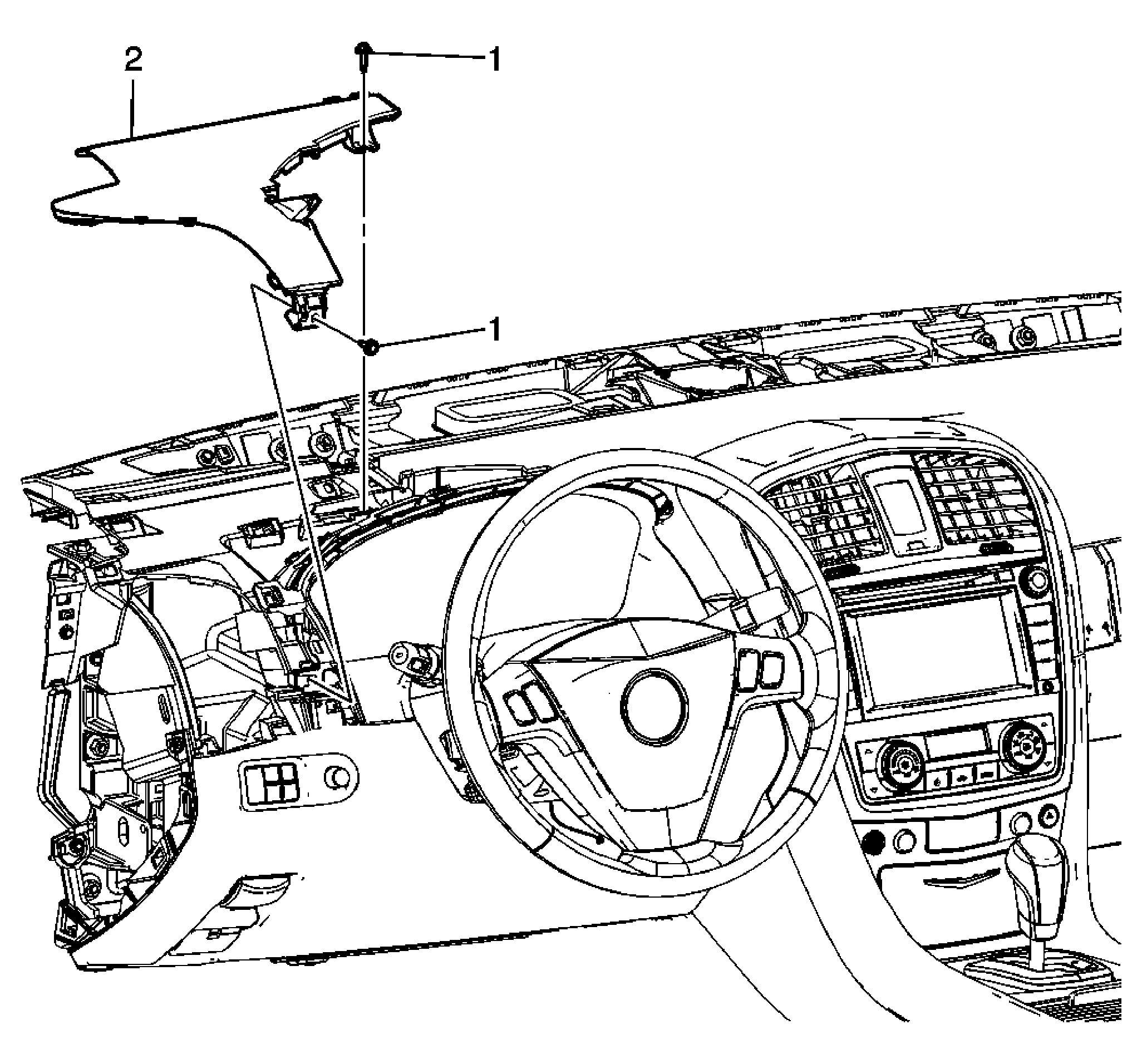

Fig 1: Instrument Panel Trim Panel Left Side (Left Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left steering column filler. Refer to Steering Column Opening Filler Replacement (Left Hand Drive) or Steering Column Opening Filler Replacement (Right Hand Drive) . Remove the instrument panel upper trim panel assembly. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Left Hand Drive) or Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Right Hand Drive) . Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster Trim Plate Cover Replacement (Left Hand Drive ) or Instrument Panel Cluster Trim Plate Cover Replacement (Right Hand Drive) . Remove the instrument panel left outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side (Left Hand Drive) or Instrument Panel Outer Trim Cover Replacement - Left Side (Right Hand Drive) .
1	Instrument Panel Upper Trim Panel Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Upper Trim Panel Assembly

Callout

Component Name

Preliminary Procedures

Remove the left steering column filler. Refer to Steering Column Opening Filler Replacement (Left Hand Drive) or Steering Column Opening Filler Replacement (Right Hand Drive) .
Remove the instrument panel upper trim panel assembly. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Left Hand Drive) or Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Right Hand Drive) .
Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster Trim Plate Cover Replacement (Left Hand Drive ) or Instrument Panel Cluster Trim Plate Cover Replacement (Right Hand Drive) .
Remove the instrument panel left outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side (Left Hand Drive) or Instrument Panel Outer Trim Cover Replacement - Left Side (Right Hand Drive) .

Instrument Panel Upper Trim Panel Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Instrument Panel Upper Trim Panel Assembly
