Rear Compartment Side Trim Replacement - Left Side (Hatchback)

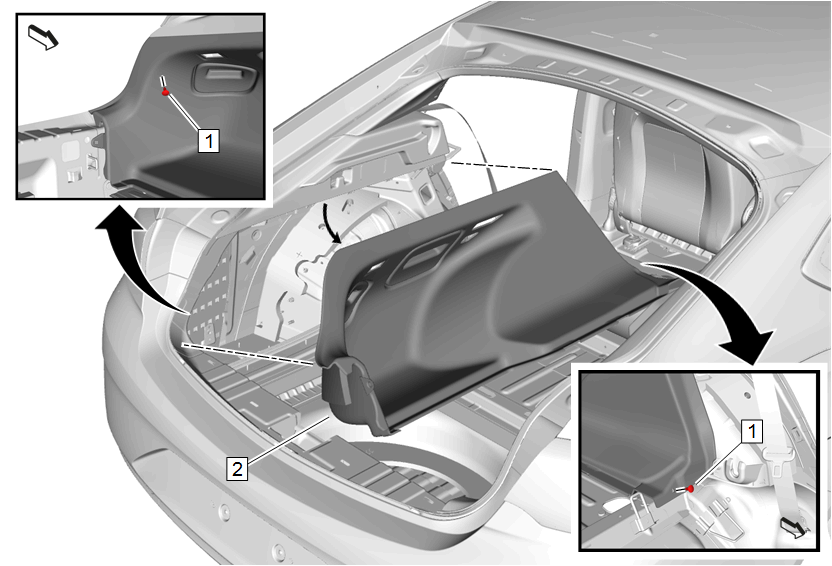

GM5122549
Callout Component Name

Preliminary Procedures

  1. Load Floor Trim Panel Replacement
  2. Liftgate Sill Garnish Molding Replacement (Hatchback) Liftgate Sill Garnish Molding Replacement (5-Door Wagon 35)
  3. Rear Seat Back Side Cushion Replacement
1 Rear Compartment Side Trim Retainer[2x]
2 Rear Compartment Side Trim

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
