Liftgate Sill Garnish Molding Replacement (5-Door Wagon 35)

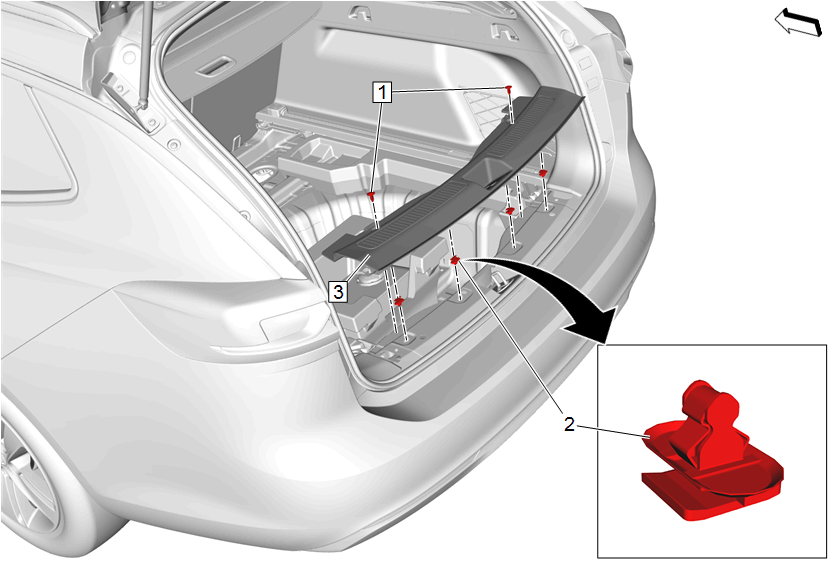

GM4739790
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Panel Trim - Remove
1 Rear End Trim Finish Panel Retainer[2x]
2 Liftgate Sill Garnish Molding Retainer [4x]
Procedure
Use a flat bladed plastic tool to remove.
3 Liftgate Sill Garnish Molding
