Liftgate Sill Garnish Molding Replacement (Hatchback)

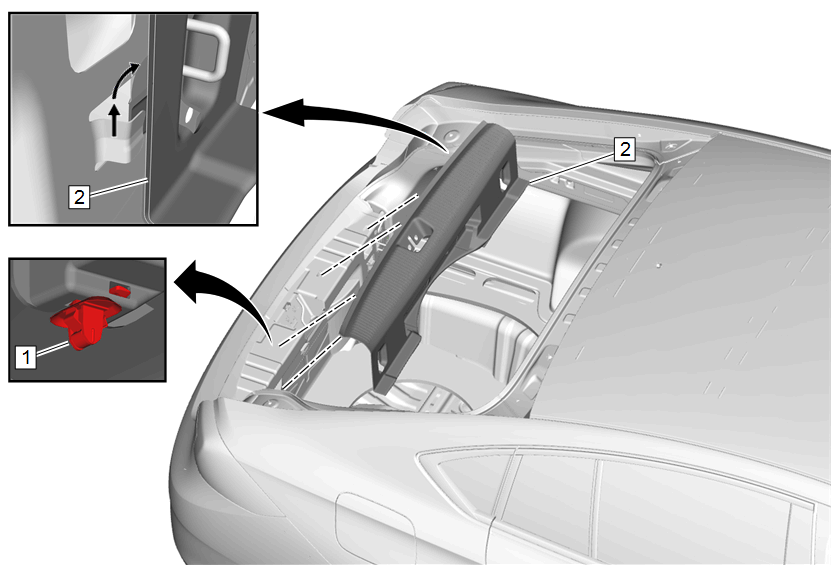

GM4641143
Callout Component Name
Preliminary Procedure
Load Floor Trim Panel Replacement
1 Liftgate Sill Garnish Molding Retainer [4x]
Procedure
Use a flat bladed plastic tool to remove.
2 Liftgate Sill Garnish Molding
Procedure
Pull the liftgate sill garnish molding upwards.
