Rear Seat Back Side Cushion Replacement

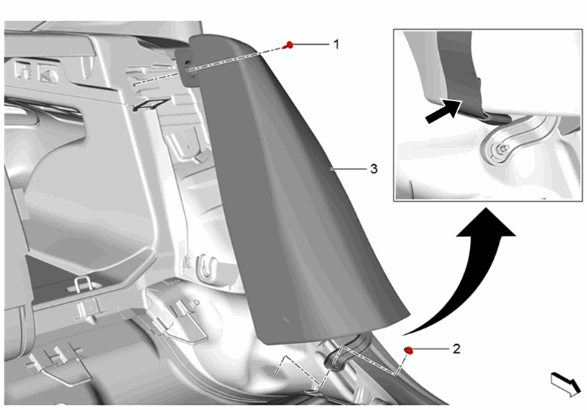

Callout	Component Name
WARNING: SIR Warning WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury. Preliminary Procedures SIR Disabling and Enabling Rear Seat Cushion Removal and Installation Fold the rear seat back to the downward position.
1	Rear Seat Back Bolster Fastener CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Rear Seat Back Bolster Nut Tighten 9 N.m (80 lb in)
3	Rear Seat Back Side Cushion Procedure Disconnect the electrical connector. NOTE: The rear seat shoulder belt should be routed above the rear seat back side cushion lower bracket.
