Instrument Panel Lower Trim Plate Applique Replacement - Right Side

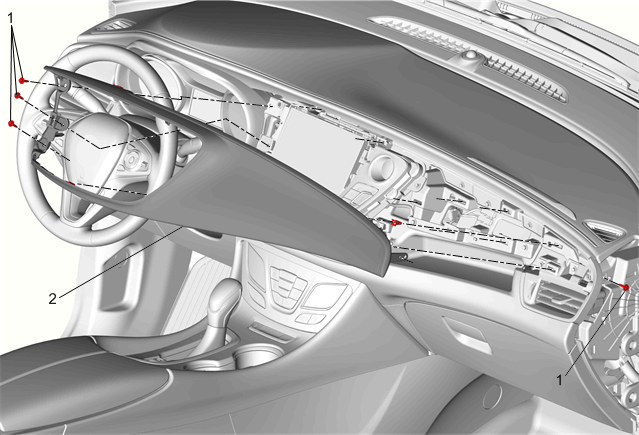

Callout	Component Name
Preliminary Procedures Instrument Panel Outer Trim Cover Replacement Instrument Panel Center Trim Plate Applique Replacement (4.2 inch Display) Instrument Panel Center Trim Plate Applique Replacement (8 inch Display)
1	Instrument Panel Accessory Trim Plate Bolt [ 4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Trim Plate Applique - Right Side Procedure Use a flat bladed plastic trim tool. Disconnect all electrical connectors.

Callout

Component Name

Preliminary Procedures

Instrument Panel Accessory Trim Plate Bolt [ 4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Trim Plate Applique - Right Side

Procedure
