Instrument Panel Center Trim Plate Applique Replacement (4.2 inch Display)

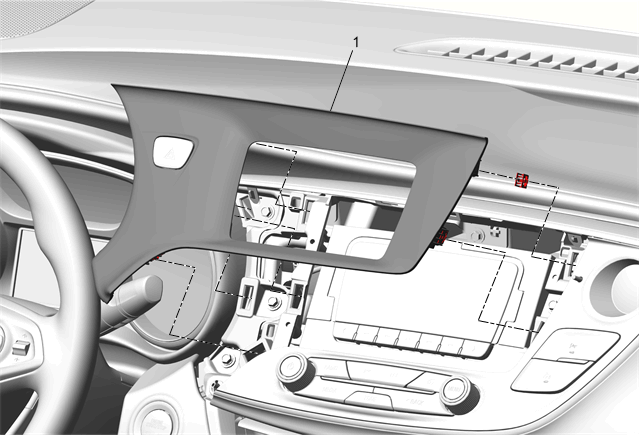

GM3765595
Callout Component Name
1 Instrument Panel Center Trim Plate Applique

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
