Instrument Panel Outer Trim Cover Replacement

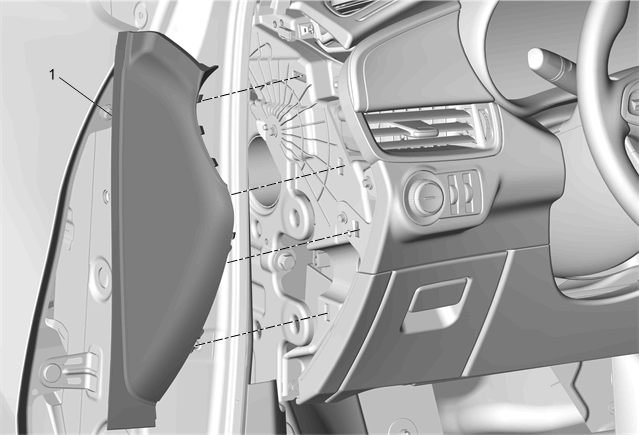

GM3762646
Callout Component Name
1 Instrument Panel Outer Trim Cover

Procedure

  1. Pull away a segment of the front side door weather-strip to clear the edge of the trim cover.
  2. Use a flat bladed plastic tool to remove.
  3. Start at the back and work your way inboard to release the tabs.
  4. Left up the cover to clear the body hinge pillar garnish molding.
NOTE:

Left side shown, right side similar.
