Instrument Panel Center Trim Plate Applique Replacement (8 inch Display)

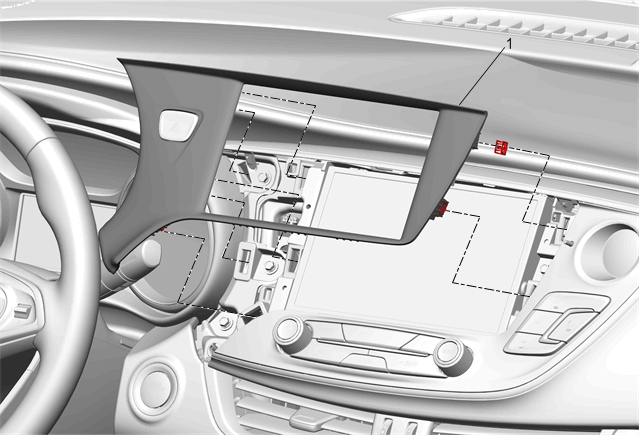

GM3765402
Callout Component Name
1 Instrument Panel Center Trim Plate Applique

Procedure

  1. Start on the right side with a flat bladed plastic tool and work your way around to remove the trim plate applique.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
