Instrument Panel Lower Trim Panel Replacement

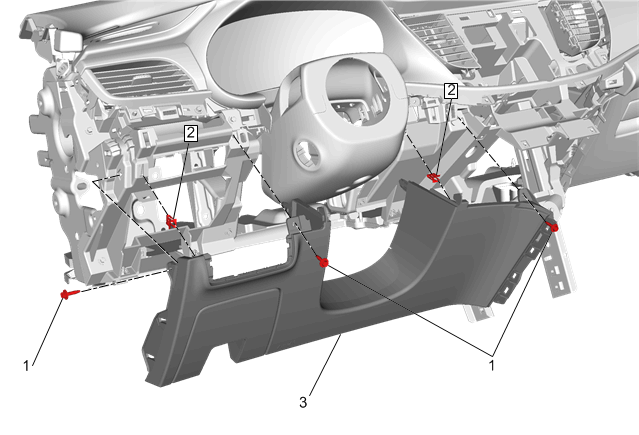

Fig 1: Instrument Panel Lower Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Lower Trim Panel Insulator Replacement - Left Side Instrument Panel Center Trim Pad Replacement Front Floor Console Extension Panel Replacement Instrument Panel Trim Pad Replacement - Left Side
1	Instrument Panel Lower Trim Panel Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Trim Panel Clip
3	Instrument Panel Lower Trim Panel Procedure Disconnect the electrical connector.
