Instrument Panel Center Trim Pad Replacement

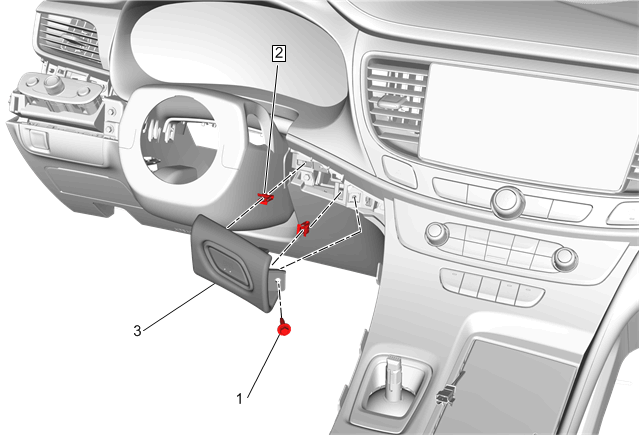

Fig 1: Instrument Panel Center Trim Pad

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Applique Replacement
1	Instrument Panel Center Trim Pad Bolt CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Center Trim Pad Clip
3	Instrument Panel Center Trim Pad Procedure  Disconnect the electrical connector.
