Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

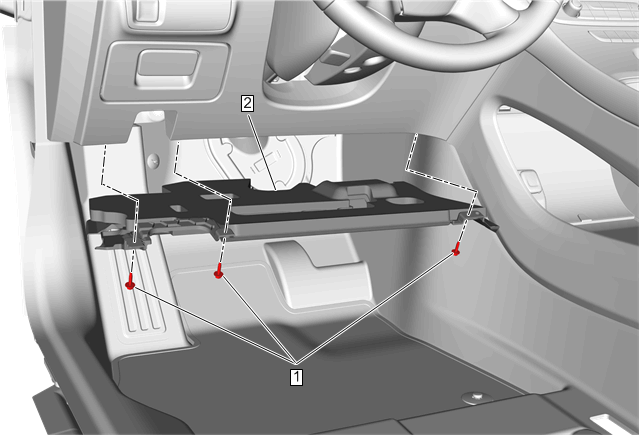

Fig 1: Instrument Panel Lower Trim Panel Insulator - Left Side
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Lower Trim Panel Insulator Bolt
CAUTION:
Fastener Caution
Tighten
2.5 N.m (22 lb in)
2
Instrument Panel Lower Trim Panel Insulator
