Front Floor Console Extension Panel Replacement

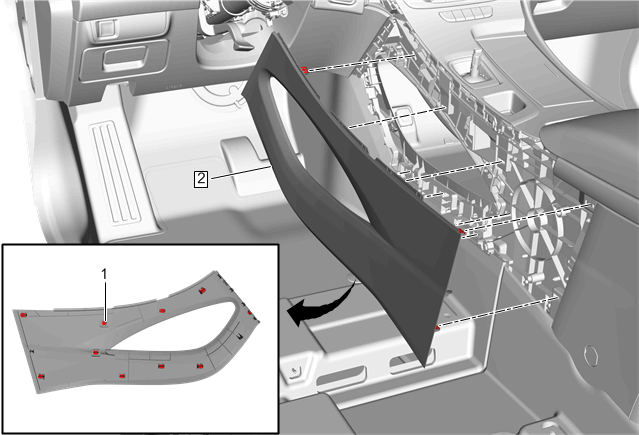

Fig 1: Front Floor Console Extension Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Applique Replacement
1	Front Floor Console Extension Clip
2	Front Floor Console Extension Panel
