Instrument Panel Compartment Replacement

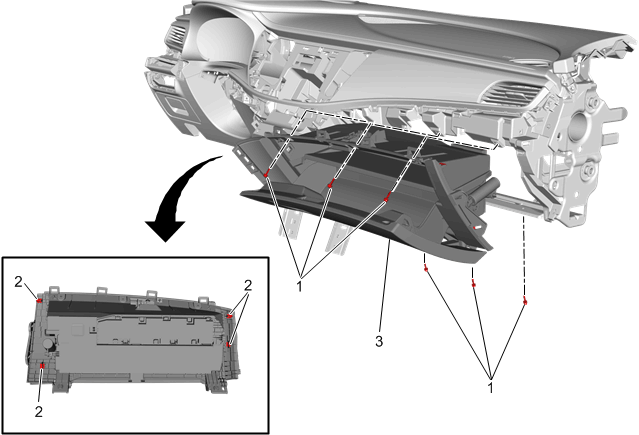

Fig 1: Instrument Panel Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Trim Pad Replacement - Right Side Instrument Panel Lower Trim Panel Insulator Replacement - Right Side Front Floor Console Extension Panel-Right Side - Remove - Front Floor Console Extension Panel Replacement Instrument Panel Lower Airbag Replacement (Driver Side)Instrument Panel Lower Airbag Replacement (Passenger Side)
1	Instrument Panel Compartment Bolt CAUTION: Fastener Caution Procedure Open the instrument panel compartment door. Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Compartment Door Clip
3	Instrument Panel Compartment Procedure Disconnect the electrical connector.
