Instrument Panel Lower Airbag Replacement (Passenger Side)

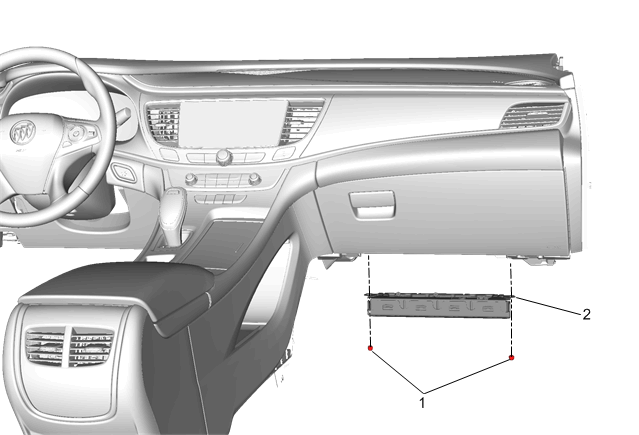

Fig 1: Instrument Panel Lower Airbag (Passenger Side)
GM4353758Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling .
1 Instrument Panel Lower Airbag Nut
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Instrument Panel Lower Airbag - Passenger Side

Procedure

  1. Disconnect the electrical connector.
  2. Inflatable Restraint Module Handling and Scrapping .
  3. Enable the SIR System. SIR Disabling and Enabling .
