Instrument Panel Trim Pad Replacement - Right Side

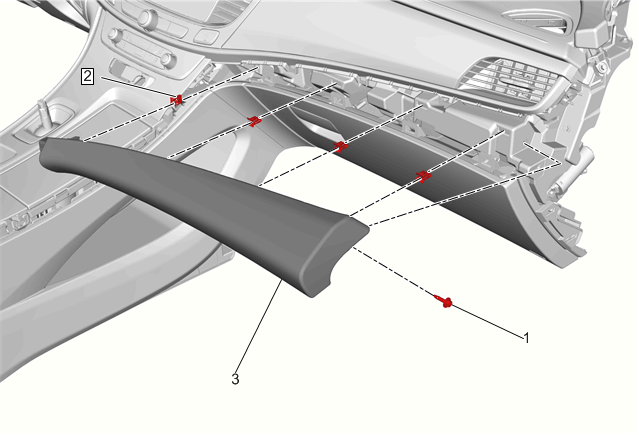

Fig 1: Instrument Panel Trim Pad - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Outer Trim Cover-Right Side - Remove - Instrument Panel Outer Trim Cover Replacement Front Floor Console Applique- - Remove - Front Floor Console Applique Replacement
1	Instrument Panel Trim Pad Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Trim Pad Clip
3	Instrument Panel Trim Pad
