Instrument Panel Cluster Trim Plate Replacement

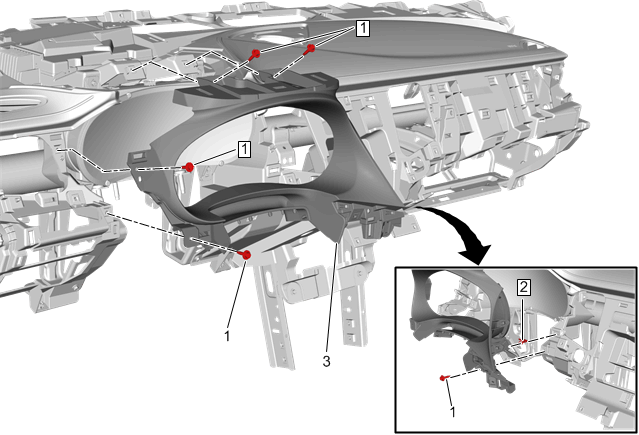

Fig 1: Instrument Panel Cluster Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Lower Trim Panel Replacement Instrument Panel Trim Plate Applique Replacement Instrument Panel Assembly Replacement Instrument Panel Center Trim Plate Applique Replacement
1	Instrument Panel Cluster Trim Plate Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Clip
3	Instrument Panel Cluster Trim Plate
