Instrument Panel Trim Plate Applique Replacement

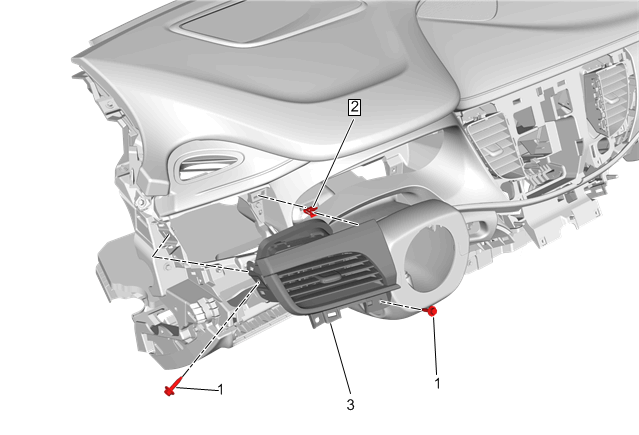

Fig 1: Instrument Panel Trim Plate Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Panel Trim Pad Replacement - Left Side
1	Instrument Panel Trim Plate Applique Bolt CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Trim Plate Applique Clip
3	Instrument Panel Trim Plate Applique
